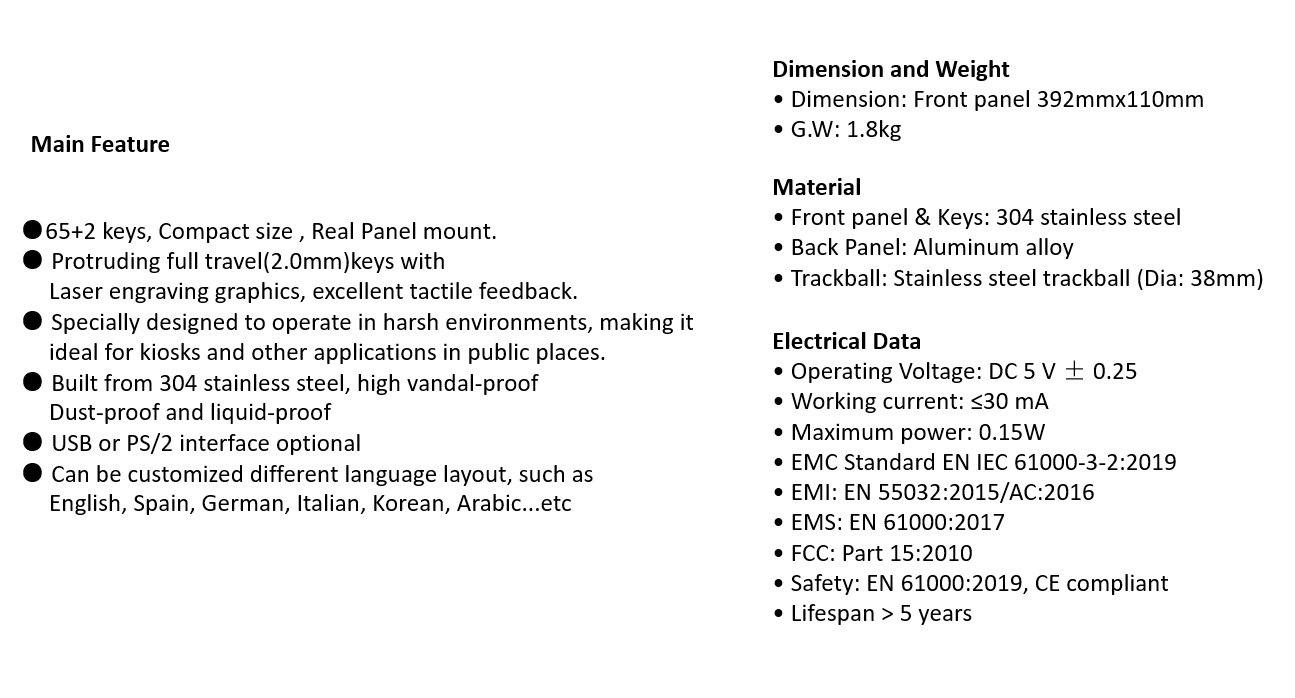

- Dimension and Weight
- Dimension: Front panel 392mmx110mm
- G.W: 1.8kg
- Front panel & Keys: 304 stainless steel
- Back Panel: Aluminum alloy
- Trackball: Stainless steel trackball (Dia: 38mm)
Electrical Data
- Operating Voltage: DC 5 V ± 0.25
- Working current: ≤30 mA
- Maximum power: 0.15W
- EMC Standard EN IEC 61000-3-2:2019
- EMI: EN 55032:2015/AC:2016
- EMS: EN 61000:2017
- FCC: Part 15:2010
- Safety: EN 61000:2019, CE compliant
- Lifespan > 5 years

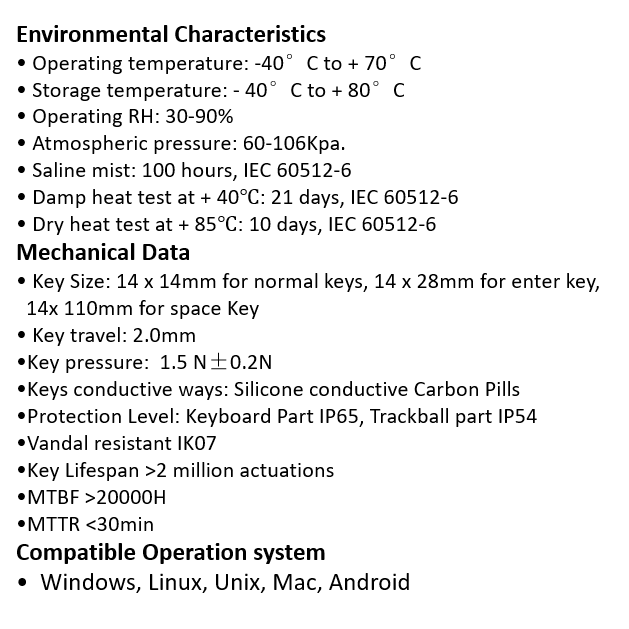

Environmental Characteristics
- Operating temperature: -40°C to 70°C
- Storage temperature: – 40°C to 80°C
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Saline mist: 100 hours, IEC 60512-6
- Damp heat test at 40℃: 21 days, IEC 60512-6
• Dry heat test at 85℃: 10 days, IEC 60512-6
