کانکتور USB 3.0 پنلی صنعتی ضد آب قفل شونده IP67 به همراه درپوش فلزی مدل DH24

The Cnlinko DH-24-J/USB3/213/SX-43-402 is a Type A USB 3.0 surface mount socket data connector. Rated 0.9 A. Compatible with the corresponding USB plug.

• Metal alloy housing
• Screw tightening design
• Reduces electromagnetic & radio frequency interference
• Resistant to corrosion, impacts, and vibration
• Heat resistant
• Includes blue waterproof cover

Specifications

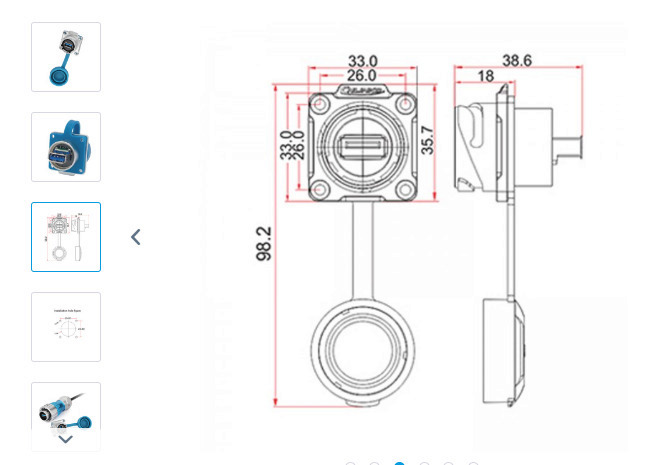

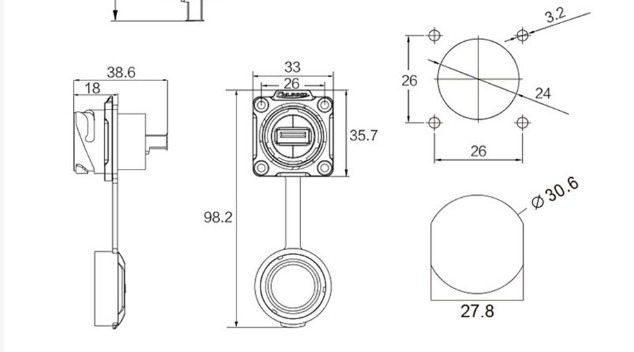

• Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 29.6 mm Depth (1.4″ x 1.3″ x 1.16″)
• Rated Current- 0.9 A
• Rated Voltage- 5V
• Ingress Protection- IP65/67
• Operating Temperature- -40 C to 85 C (-40 F to 185 F)
• Housing Material- Chrome Plated Zinc Alloy
• Wiring Type- Soldering
