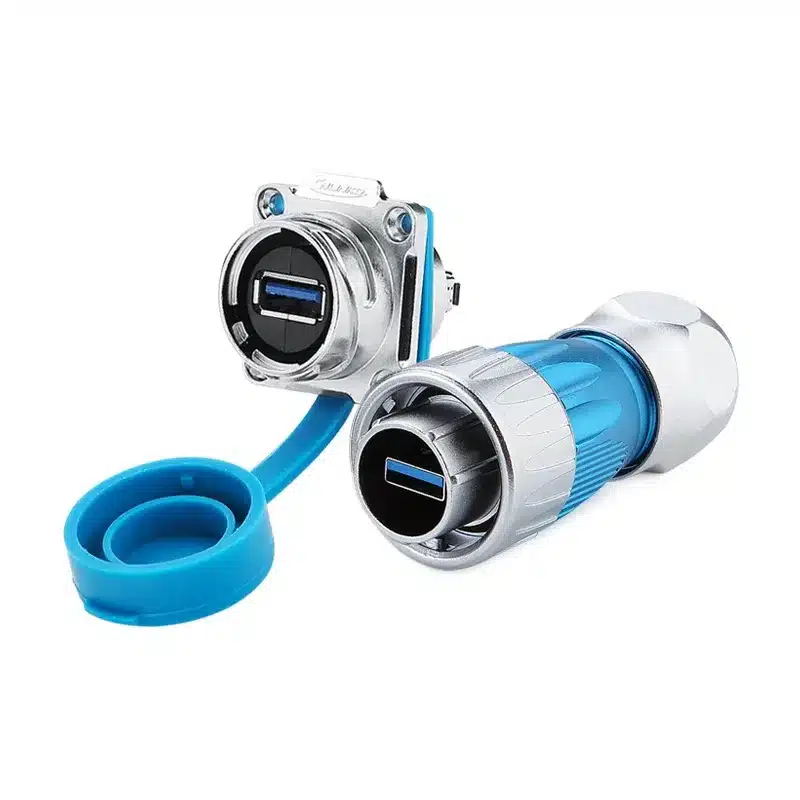

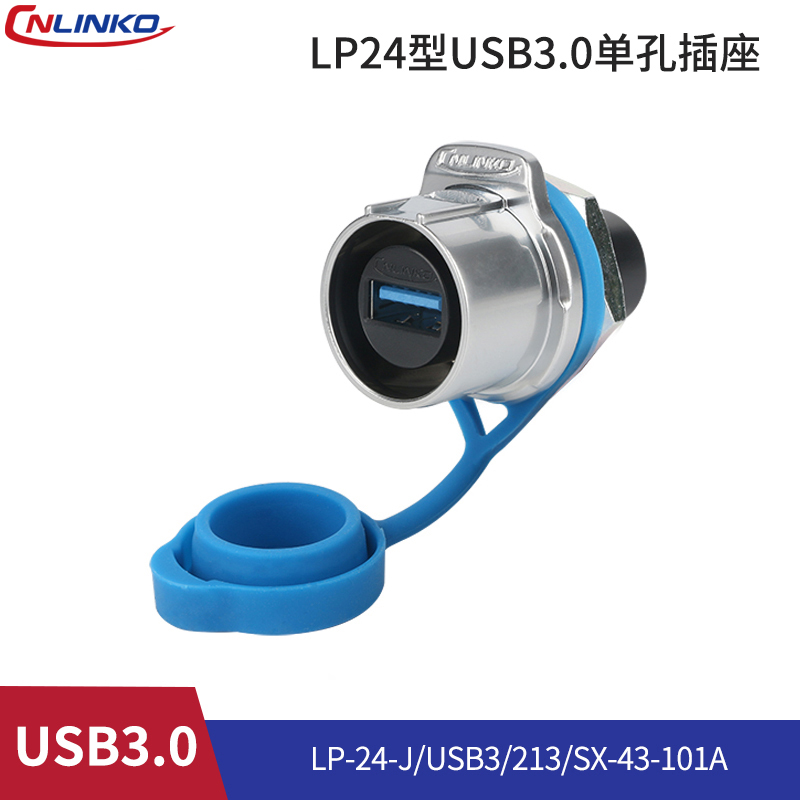

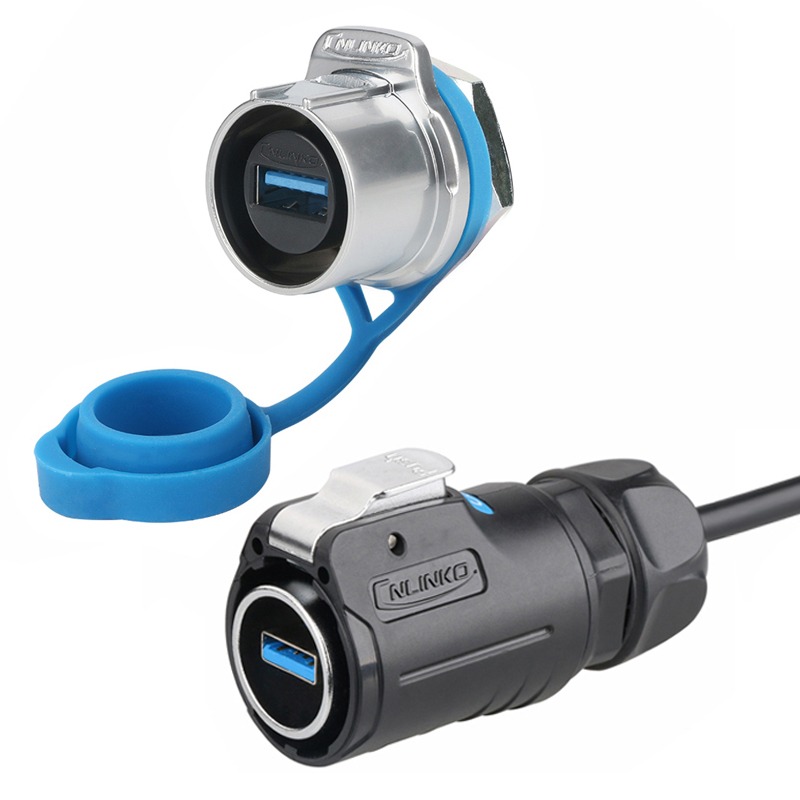

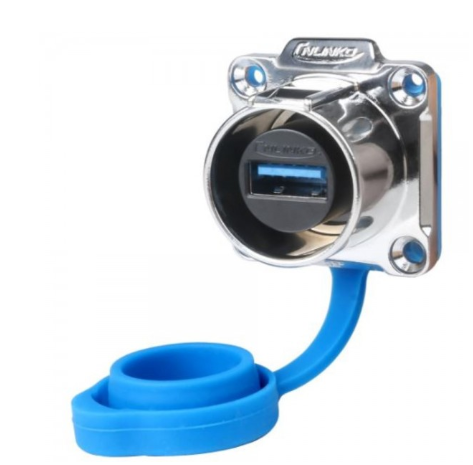

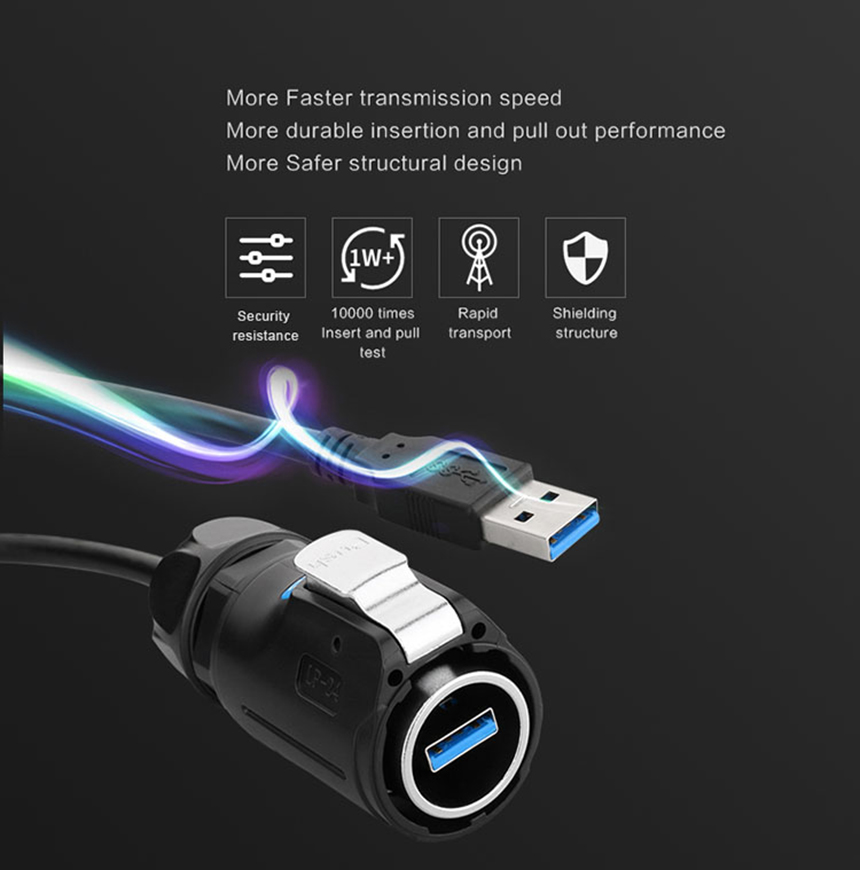

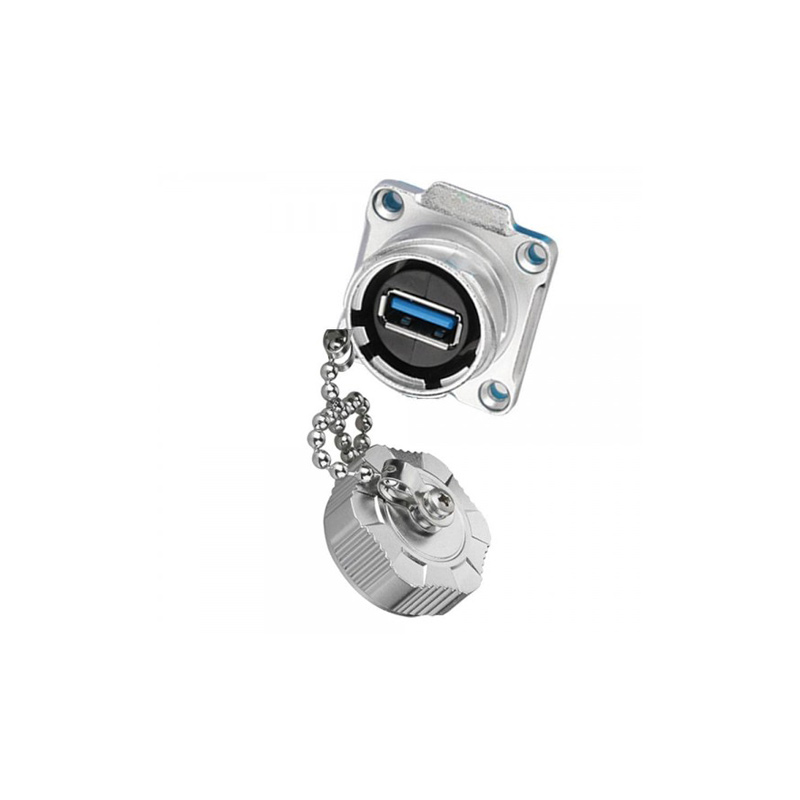

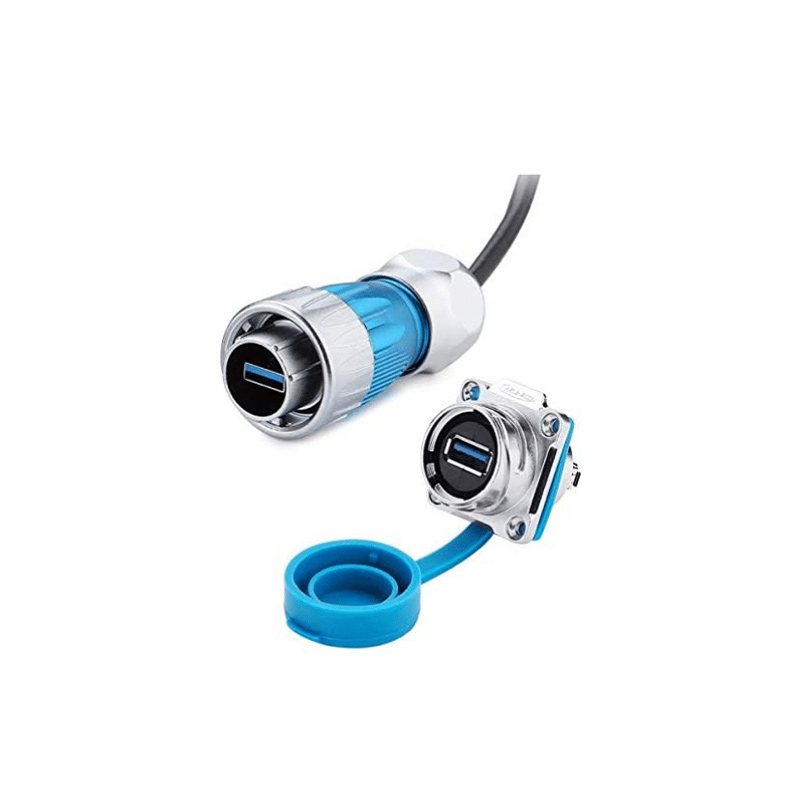

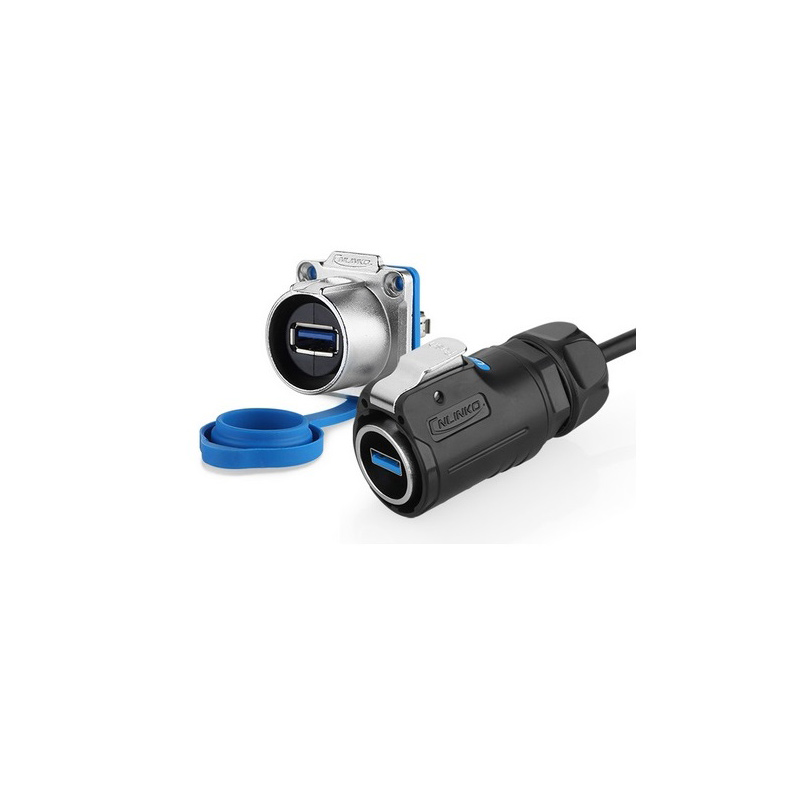

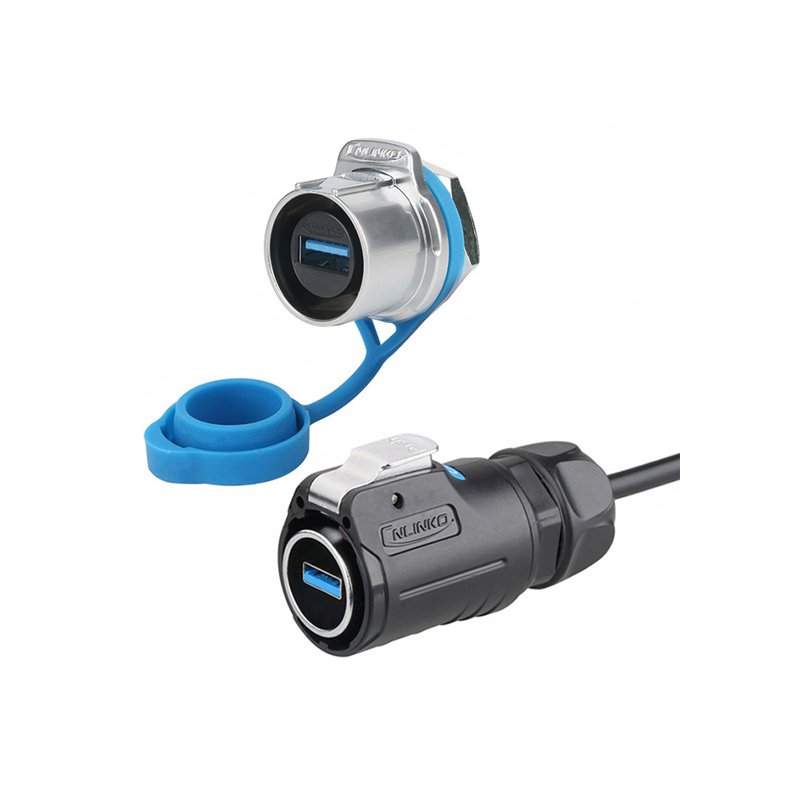

The Cnlinko LP-24-J/USB3/213/SX-43-401A is a USB 3.0 surface mount socket data connector. Rated for 900mA and 5V. It locks into the corresponding USB plug.
- Electromagnetic interference protection

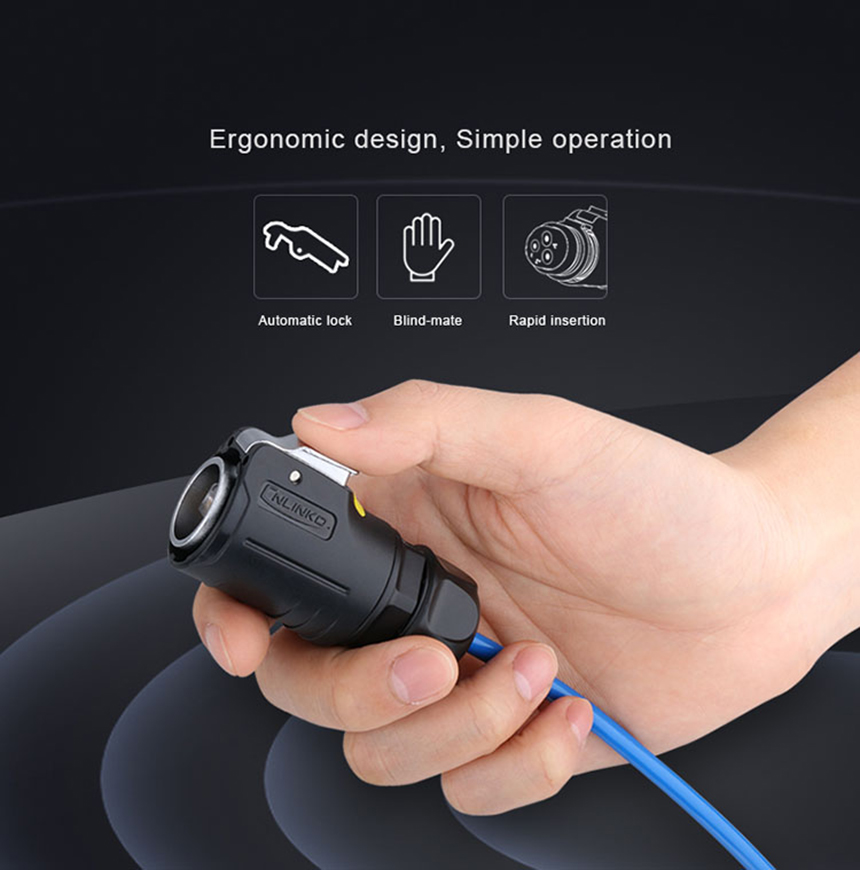

- Simple operation
- Comes with waterproof cap
- Previously known as LP-24-USB3.0-S01
Specifications

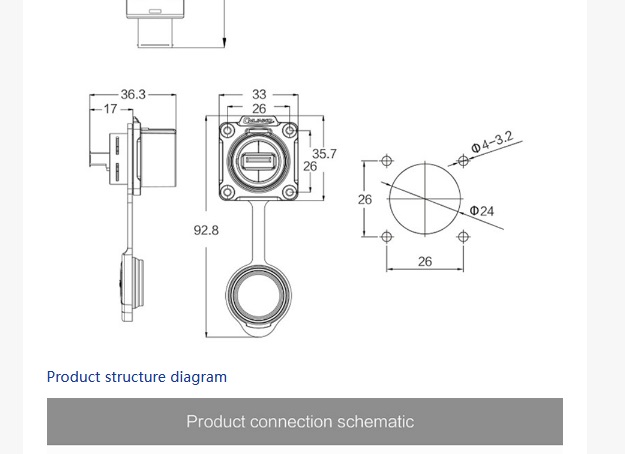

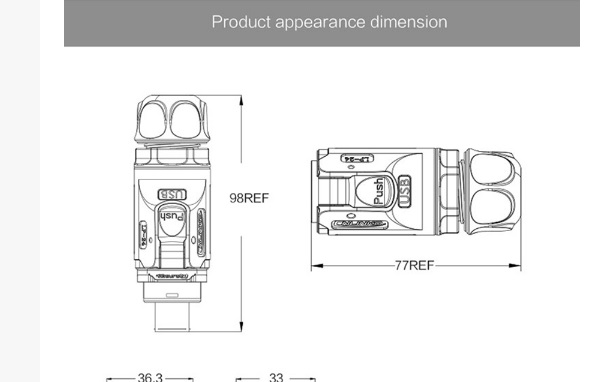

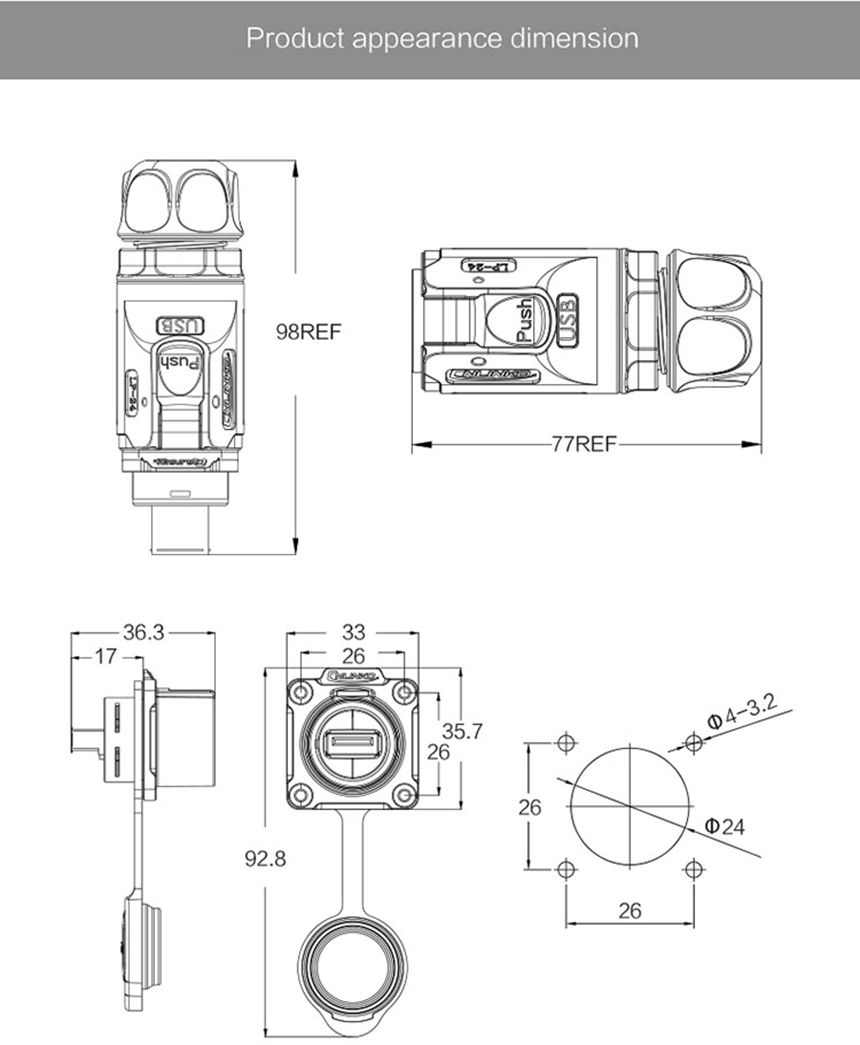

- Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 29.8 mm Depth (1.4″ x 1.3″ x 1.17″)
- Rated Current- 0.9 Amps
- Rated Voltage- 5V
- Ingress Protection- IP65 (total protection from dust and low pressure water jets from any direction)
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)
- Housing Material- Chrome Plated Zinc Alloy
- Wiring Type- Soldering
