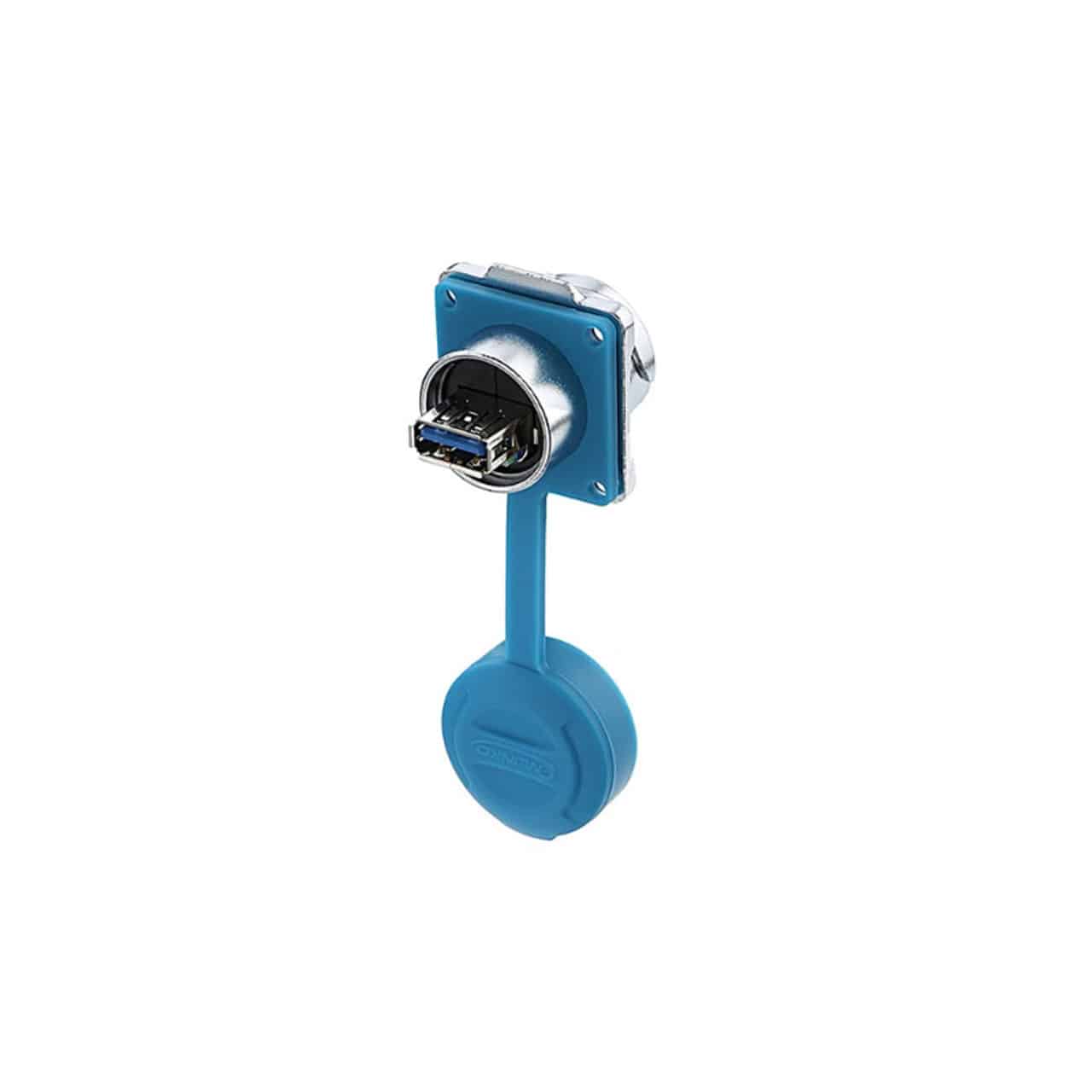

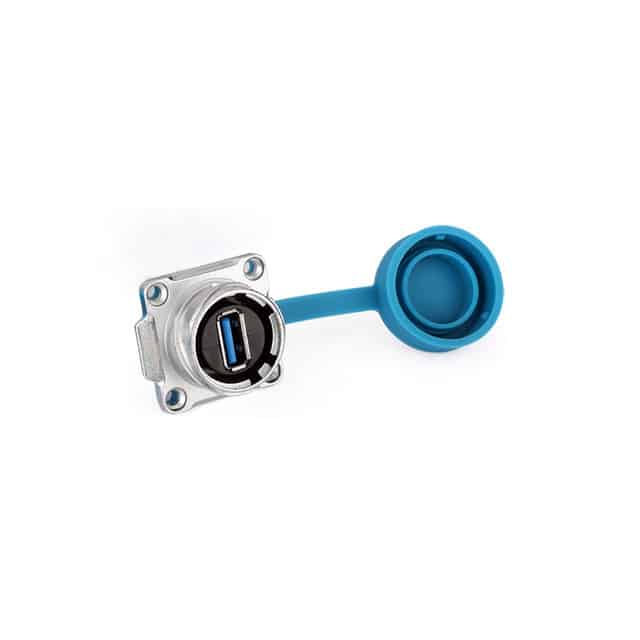

The Cnlinko DH-24-J/USB3/213/SX-43-401A is a Type A USB 3.0 surface mount socket data connector. Rated 0.9 A. Compatible with the corresponding USB plug. Also known as DH-24-USB3.0-S01
- Metal alloy housing
- Screw tightening design
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion, impacts, and vibration
- Heat resistant
- Includes blue waterproof cover
Specifications

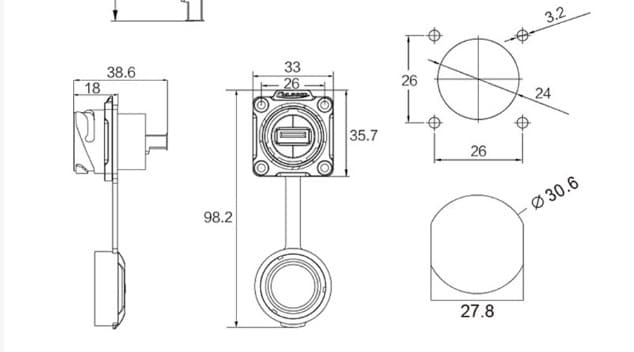

- Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 29.6 mm Depth (1.4″ x 1.3″ x 1.16″)
- Rated Current- 0.9 A
- Rated Voltage- 5V
- Ingress Protection- IP65/67
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)
- Housing Material- Chrome Plated Zinc Alloy
- Wiring Type- Soldering
