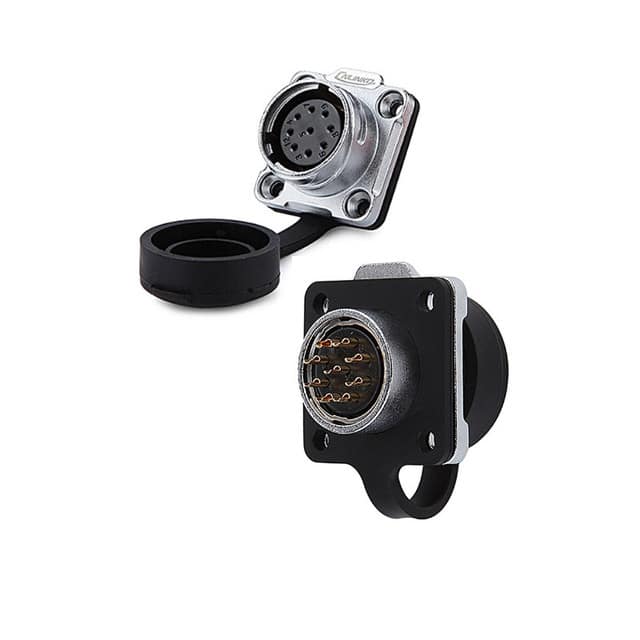

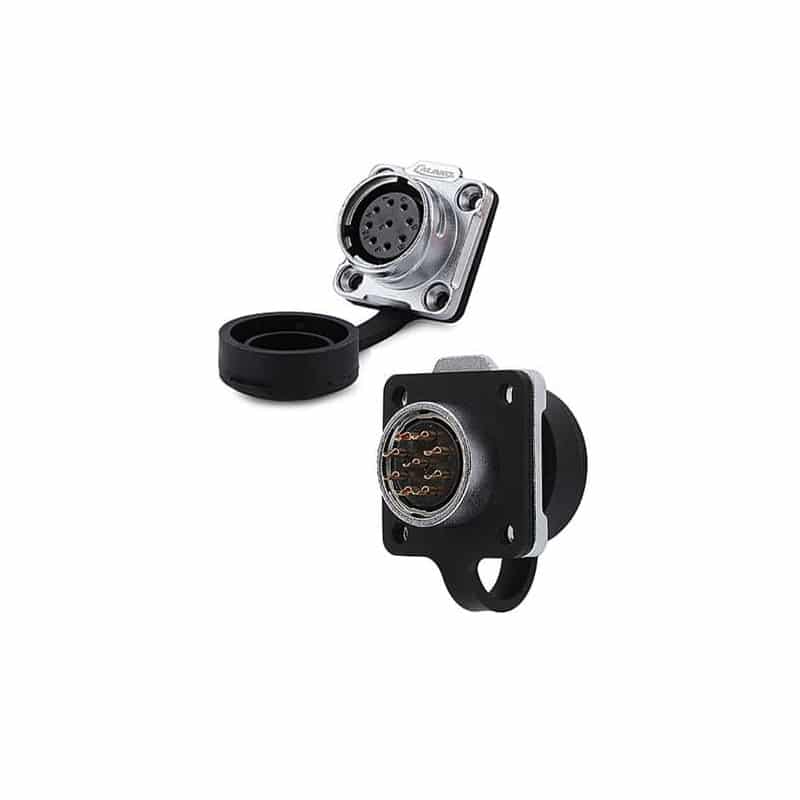

The Cnlinko DH-20-J09SX-03-401 is a 9 pin female socket for signal applications. Accommodates 26-24 AWG cable. Rated for 400V and 5 A. Ideal for applications such as LED displays and stage lighting equipment. Also known as DH-20-J09SX-01-001
- Metal alloy housing
- Screw tightening design
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion
- Heat & pressure resistant
- Includes waterproof cover
Specifications
- Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
- Number of Pins- 9
- Wire Gauge- 26-24 AWG
- Diameter Range- 5.5-7mm
- Contact Diameter- 1mm
- Rated Current- 5A
- Operating Voltage- 400V
- Contact Resistance- < 5mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Wiring Type- Soldering
- Approvals- CE, CCC, RoHS, ISO9001
