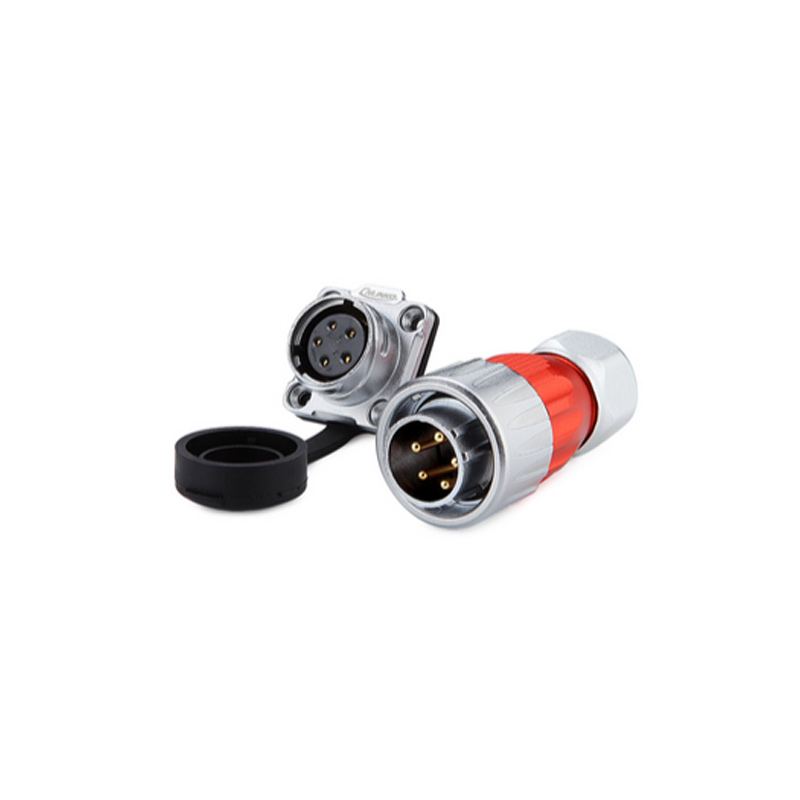

The Cnlinko DH-20-J05SX-03-401 is a 5 pin female socket for power applications. Accommodates 18-16 AWG cable. Rated for 500V and 12 A. Ideal for applications such as LED displays and stage lighting equipment. Also known as DH-20-J05SX-01-001
- Metal alloy housing
- Screw tightening design
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion
- Heat & pressure resistant
- Includes waterproof cover
Specifications
- Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
- Number of Pins- 5
- Wire Gauge- 18-16 AWG
- Diameter Range- 7-9mm
- Contact Diameter- 1.8mm
- Rated Current- 12A
- Operating Voltage- 500V
- Contact Resistance- < 2.5mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Wiring Type- Soldering
- Approvals- CE, CCC, RoHS, ISO9001
