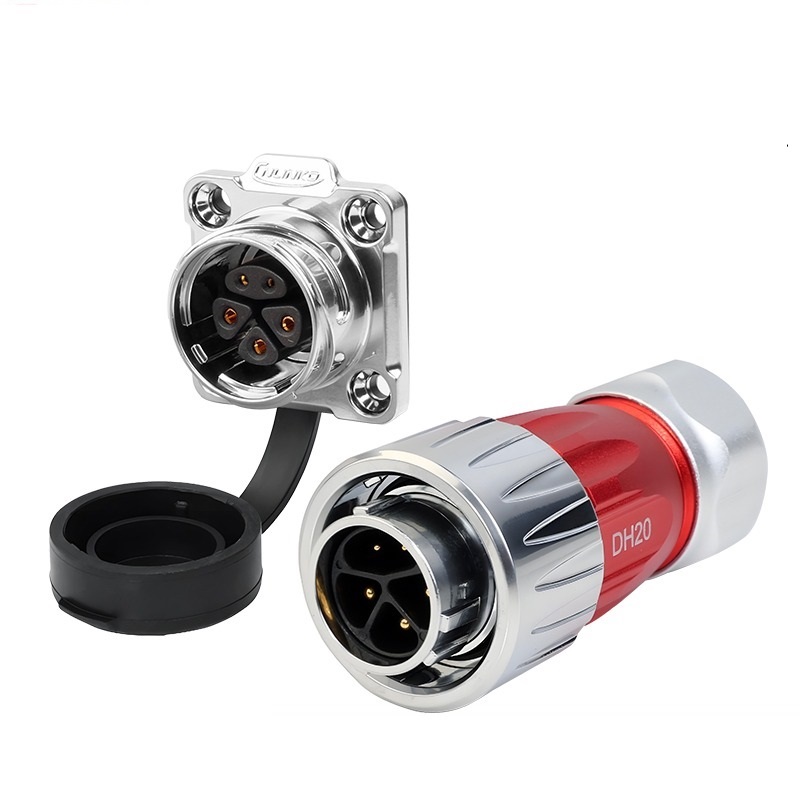

کانکتور 5 پین ترکیبی تغذیه/سیگنال ضد آب قفل شونده 10/5 آمپر 300 VAC

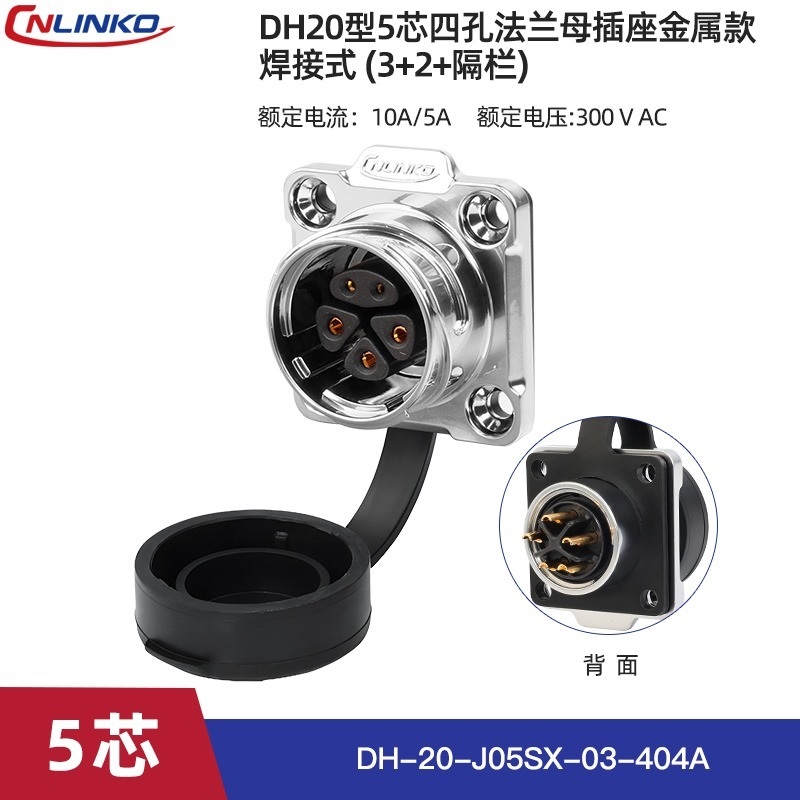

5 pole chassis connector female max. 12 A / 500 V. Five contact sockets: 5 x Ø 1.80 mm.
IP67 chassis socket as panel mounting version in corrosion-resistant metal housing in the DH series with the size 20.
The cable connection size is 1 mm (AWG 18) to 1.5 mm (AWG 16)
The plug can be assembled via solder connection with the cable.
The robust panel socket for voltage transmission in industrial environments with a width of 30 mm.
The DH series uses the unique spring design, a standard slot,
made of alloy material, a continuous fixing method in the outer seal and a new appearance,
that meets the requirements of a high quality application.
The connector is waterproof and dustproof according to IP67 protection class.
The fast bayonet connection ensures a secure connection and protects against data and power interruption.
The maximum rated power for the mains plug is max. 12 amps.
The max. Operating voltage from the chassis socket is rated at 500 volts.
The plugs have a color coding system for a quick identification of the line.
The connectors with the red aluminum housing are designed for power transmission.
The connectors are temperature and pressure resistant.
Depth: 30.5 mm
Width: 30 mm
Height: 32.7 mm
