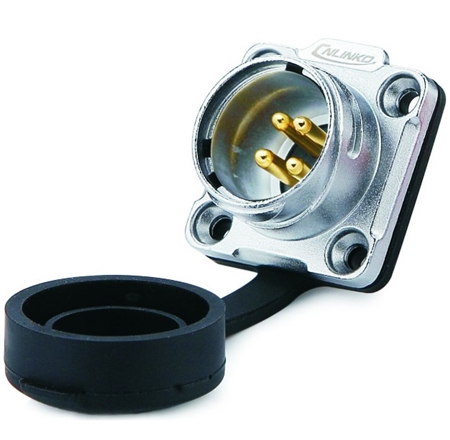

Technical Specifications

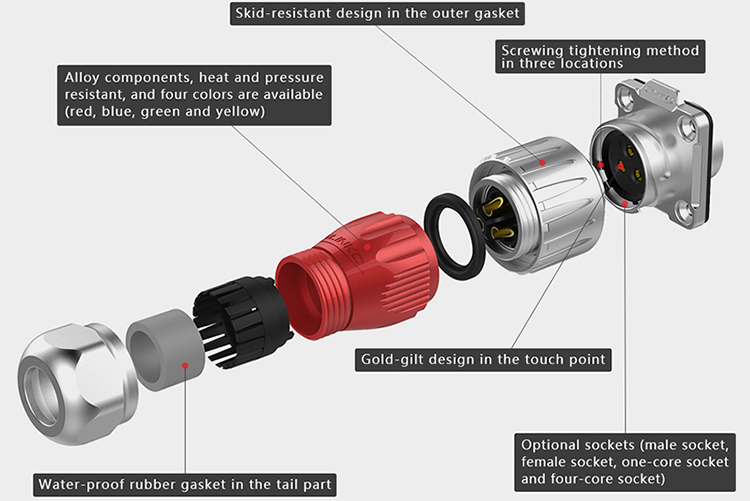

- Alloy external protective material
- Military standard three-point spiral locking
- IP65/67 rating when connected
-
Cable specifications: 12-14 AWG
-
Diameter range: Φ8mm～Φ12mm
-
Contact diameter × number: Φ2.7×4
-
Rated Current (A): 20A
-
Operating voltage (AC.V.rms): 500V
-
Contact resistance: <1mΩ
-
Withstand Voltage (AC.V) 1 minute: 2500V
-
Insulation resistance: ＞500MΩ
-
Protection level: IP65/IP67
-
Operating temperature: -40℃～80℃
-
Connection mode: 1/4 Bayonet Connection Type
-
Mounting Cable: Soldering / Crimping
-
Copper pins: Copper alloy (gold plated 4U )
-
Flammability rating: UL94-V0
