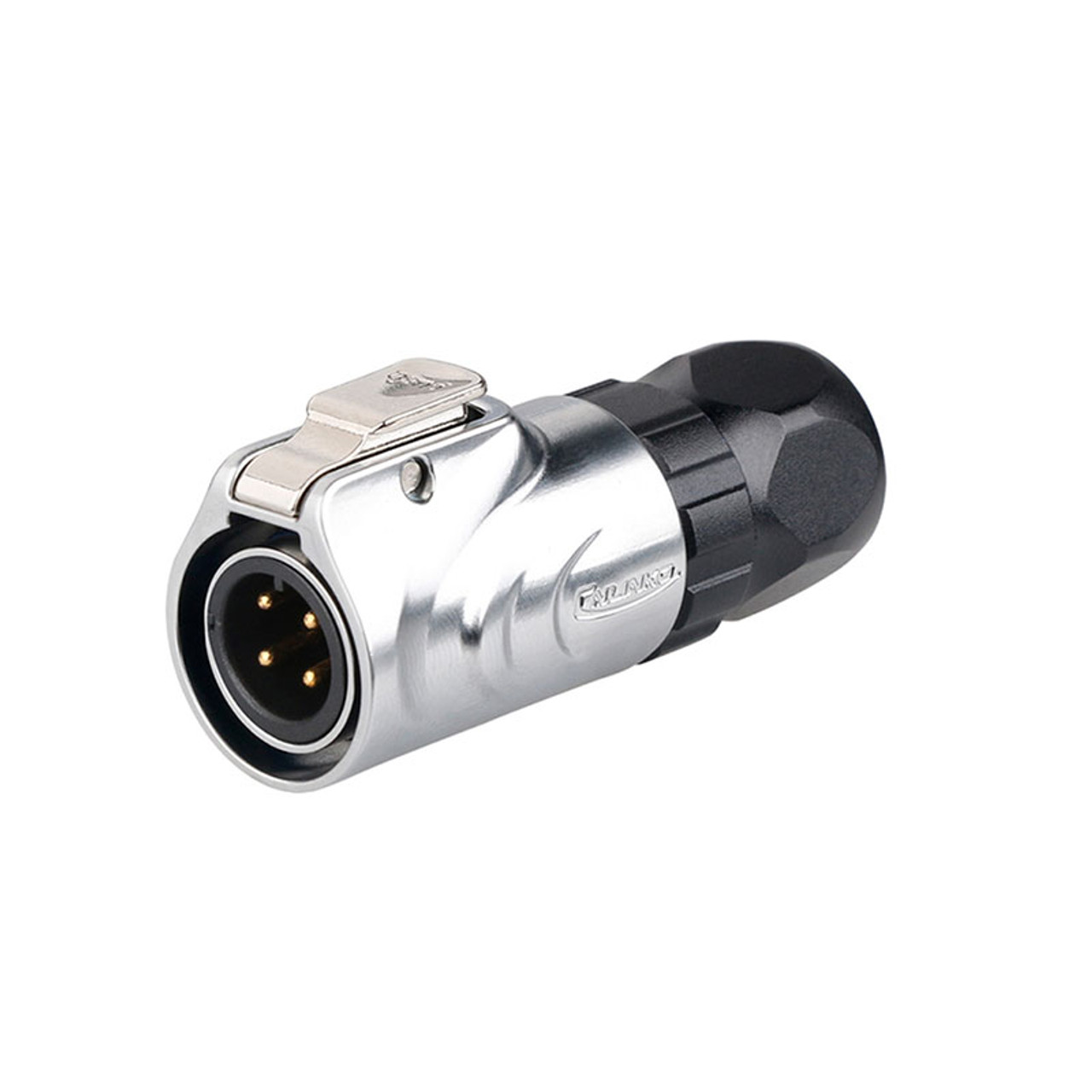

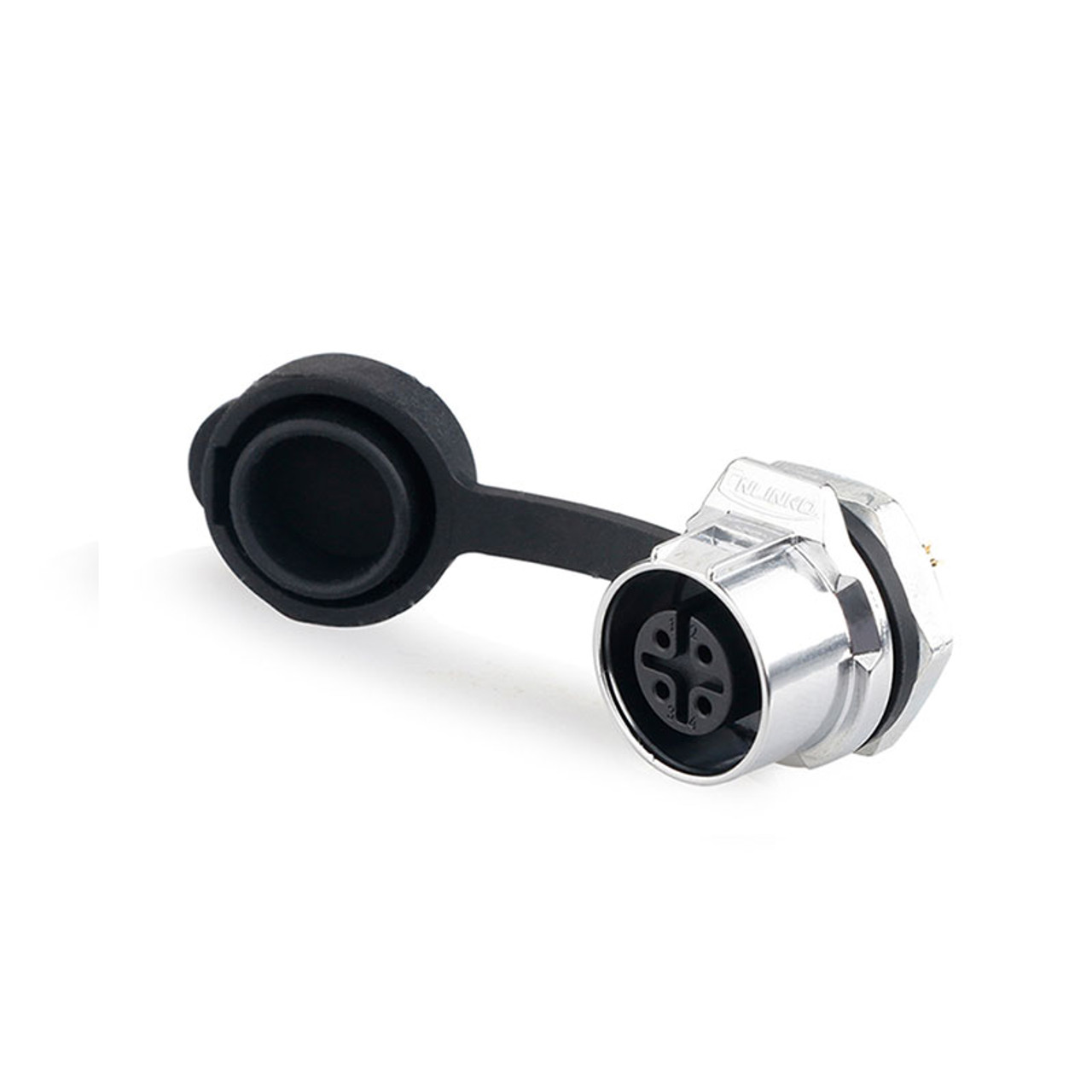

کانکتور 4 پین تغذیه صنعتی ضد آب 125 ولت، 5 آمپر ، مدل LP12 مهره از پشت

LP12,125V ,5A ,4Pin IP67 Waterproof Power Connector Metal Shell Nut Behind

Technical Specifications

  • Gold-plated contacts for increased corrosion protection
  • PBT shell
  • High temperature and pressure resistance
  • IP65/67 rating when connected
  • Number of Pins: 4
  • Pin Diameter – 1.5 mm
  • Cable Connection – 16-18 AWG
  • Rated Current – 10 Amperes
  • Operating Voltage – 250V AC
  • Contact Resistance – < 2.5mOhm
  • Withstand Voltage – 1500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection – IP65/67
  • Operating Temperature – -40 C – 80 C
  • Body Material – High Performance Plastic
  • Contact Material – Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0

2,760,000 تومان

10 در انبار

Quantity Discount (%) Price
1 - 9 2,760,000 تومان
10 - 24 100 % 24 تومان
25 - 99 100 % 23 تومان
100+ 100 % 21 تومان
Brand

CNLINKO

شناسه محصول: LP-16-C04SX-03-101 ، LP-16-J04PE-03-001 دسته: , برند:
0 افرادی که هم اکنون این محصول را بازدید می کنند

General info

Brand

CNLINKO

Technical Specifications

  • Gold-plated contacts for increased corrosion protection
  • PBT shell
  • High temperature and pressure resistance
  • IP65/67 rating when connected
  • Number of Pins: 4
  • Pin Diameter – 1.5 mm
  • Cable Connection – 16-18 AWG
  • Rated Current – 10 Amperes
  • Operating Voltage – 250V AC
  • Contact Resistance – < 2.5mOhm
  • Withstand Voltage – 1500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection – IP65/67
  • Operating Temperature – -40 C – 80 C
  • Body Material – High Performance Plastic
  • Contact Material – Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
type

Power Connectors

Brand

CNLINKO

Connector Size

M12
