| Brand : | CNLINKO |
| Series: | YA-Serie, YA-20 |
| Version (Plug / Chassis): | Chassis version |
| Connector type: | Power |
| Connection mode: | Gewindeanschluss |
| Number of contacts: | 3 |
| Gender (M / F): | Female connector |
| Connector housing color: | Nickel |
| Cable diameter min. in mm: | Ø 1 mm |
| Cable diameter max. in mm: | Ø 11.5 mm |
| Cable connection size min. in mm: | Ø 2.5 mm |
| Cable connection size max. in mm: | Ø 4 mm |
| Cable connection size min. in AWG: | AWG 14 |
| Cable connection size max. in AWG: | AWG 12 |
| Wiring mode: | Solder contact |

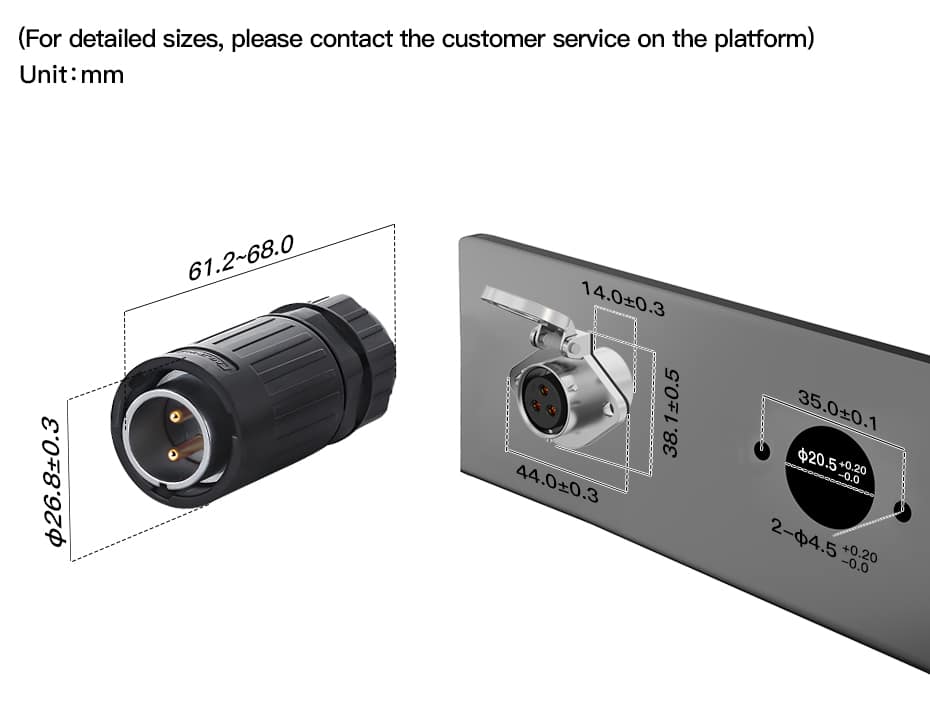

| Installation diameter in mm: | Ø 21.00 mm |
| Installation fixing height x width in mm: | 0.00 mm x 35.00 mm |
| Number of mounting holes: | 2 |
| Mounting hole diameter mm: | 4.2 mm |
| Insulation component: | High performance plastics |
| Waterproof component: | Silicagel |
| Working temperature minimum: | -40° |
| Working temperature maximum: | +80° |
| Plug cycle: | ≥ 1700 |
| Salt spray test: | PH 6.2 – 7.2, NaCI 1.5% 48h |
| IP protection class according to EN60529 2000: | IP67 |
| Classification flammability of plastics: | UL94-V0 |
| ROHS according to EN62321-1: | Yes |
| Country of origin: | China |
| high voltage rating (VAC): | 2500 V |
| Operating voltage (VAC.RMS): | 500 V |
| max. Rated current (A): | 20 A |
| Insulation resistance: | 500 MΩ |
| Contact resistance: | < 1 mΩ |
| POS packaging: | No |
| Markets: | Industrial equipment, Industrial robot, Photovoltaic Equipment, LED interior / exterior lighting, Industry, Devices construction, Plant construction, Cable Assembly, Power supply, power storage |
| Certified standards: | UL1977, CE EN60309-1, TÜV |
کانکتور 3 پین تغذیه صنعتی 50 ولت 20 آمپر با درپوش اتوماتیک فلزی مدل YA20

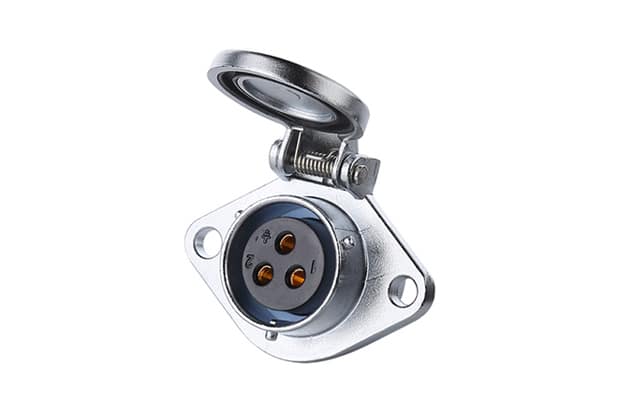

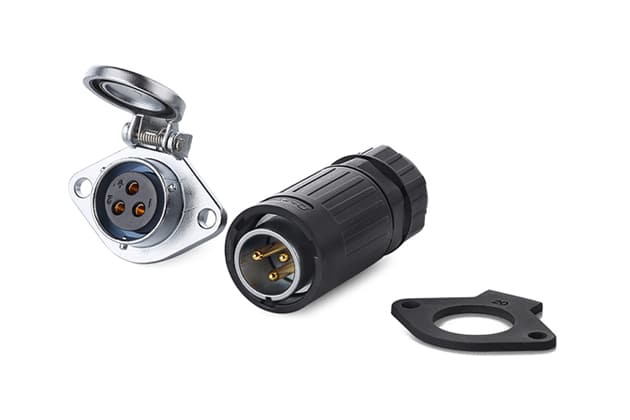

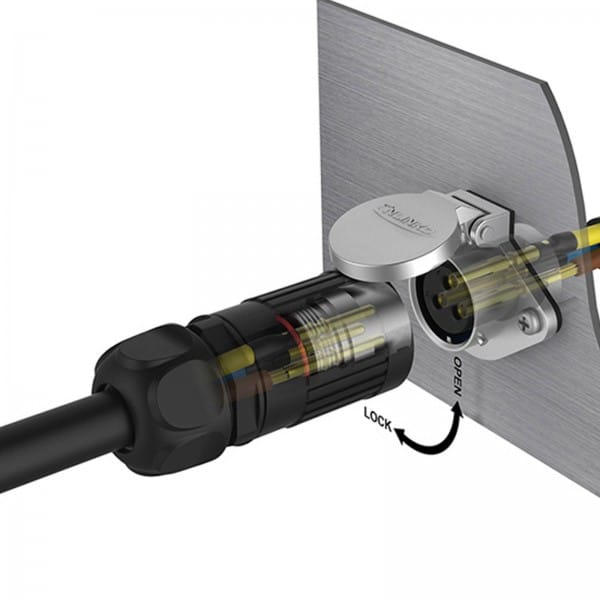

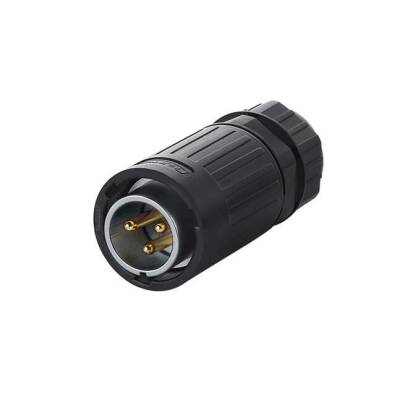

YA-20 Power Stecket M20 3 pol female socket square with automatic cap 500 V 20 A"
3,980,000 تومان
2 در انبار
| Brand |
CNLINKO |
|---|
0
افرادی که هم اکنون این محصول را بازدید می کنند
General info
| Brand |
CNLINKO |
|---|
| Brand |
CNLINKO |
|---|---|
| Connector Size |
M20 |
| type |
Power Connectors |
| material |
Metal/Plastic |
دیدگاهها
پاکسازی فیلترهیچ دیدگاهی برای این محصول نوشته نشده است.
