کانکتور 3 پین تغذیه صنعتی کابل خور قفل شونده 500 ولت 25 آمپر مدل LP24

LP24 25A 3Pin Male Plug IP68 Waterproof Power Connector Screw Type

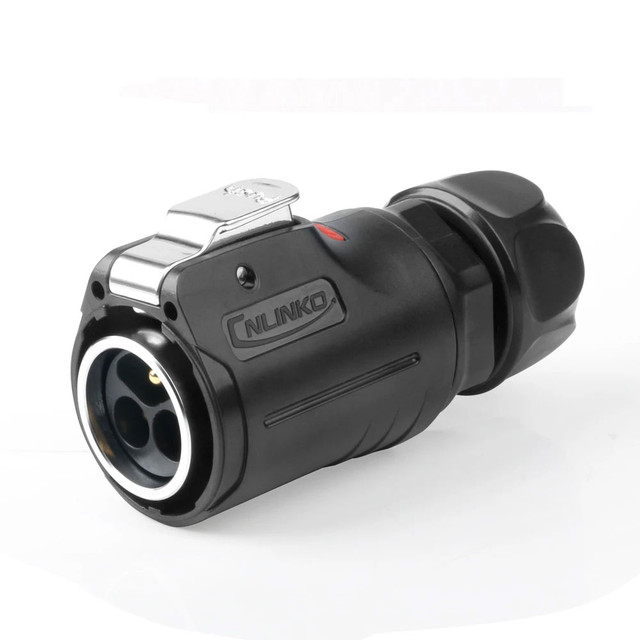

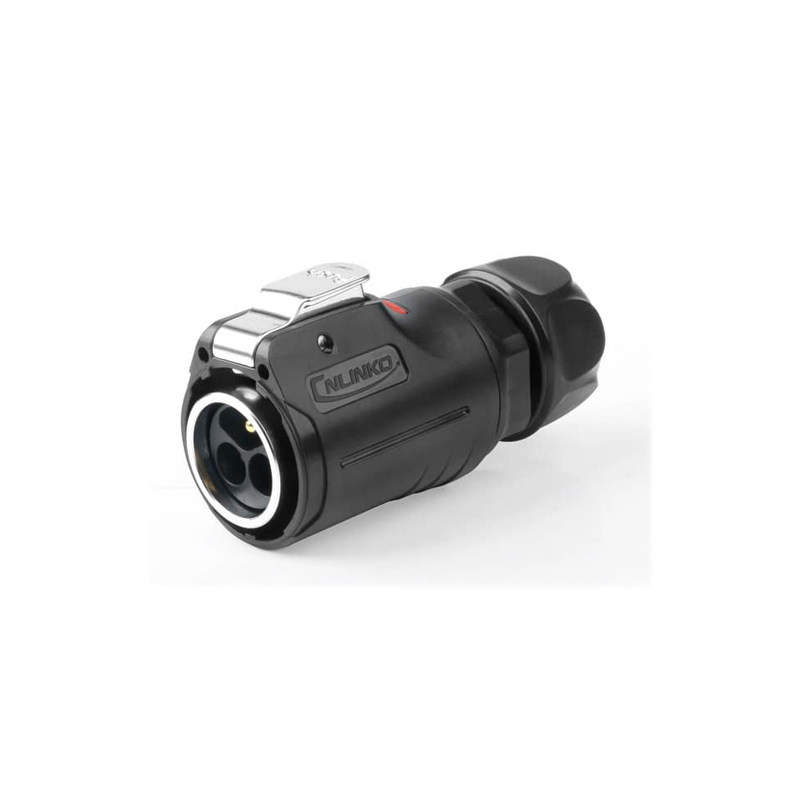

The Cnlinko LP-24-J03PE-01-001 is a 3 pin female cable plug for power applications. Accommodates 14-12 AWG cable. Rated for 500V and 25 A. It has a snap-fastener design for a reliable connection. Made to stand up to the demands of industrial applications.

  • Formed wire pins
  • PBT shell
  • Snap fastener button
  • Stable connection in higher temperatures
  • Works in outdoor installations
  • Categorized by red Power symbol on housing

Specifications

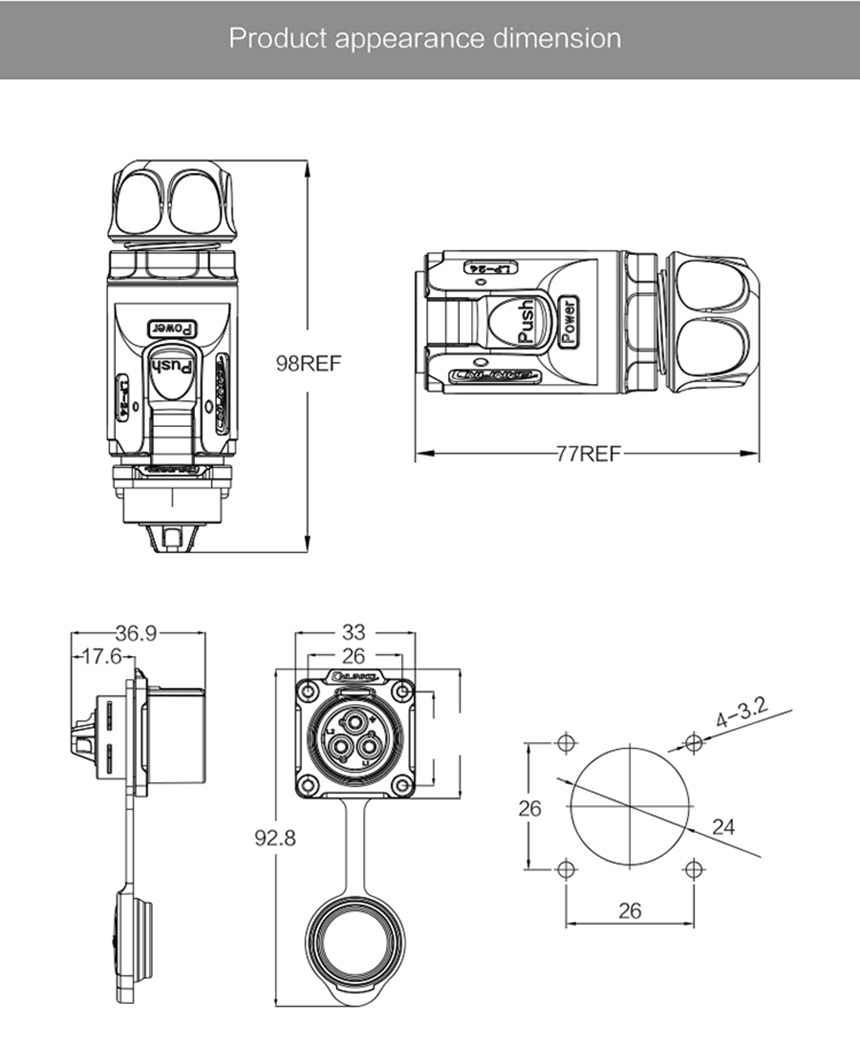

  • Dimensions- 77 mm Length x 39 mm Diameter (3.03″ x 1.54″)
  • Number of Pins- 3
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 3mm
  • Rated Current- 25A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- High Performance Plastic
  • Hardware- Zinc Alloy
  • Flammability Rating- UL94-V0
  • Approvals- UL, CE, CCC, RoHS, ISO9001
  • Wiring Mode- Soldering

1,960,000 تومان

12 در انبار

Quantity Discount (%) Price
1 - 9 1,960,000 تومان
10 - 24 100 % 17 تومان
25 - 99 100 % 16 تومان
100+ 100 % 15 تومان
شناسه محصول: LP-24-C03PE-21-002A دسته: , برند:
0 افرادی که هم اکنون این محصول را بازدید می کنند

کانکتور تغذیه 3 پین صنعتی کابل خور مدل LP24 دارای استاندارد IP68 بوده ، روکش پین ها از جنس آب طلا می باشد، جنس بدنه از آلیاژ آلومینیوم و روی بوده ومقاوم در برابر شرایط پر تنش جوی( دمای بالا و پایین، مه نمکی و .. ) می باشد. درپوش سیلیکونی و فلزی قابل انتخاب می باشد. مکانیزم قفل شوندگی توسط شستی بالای کانکتور کابل خور می باشد.

type

Power Connectors
