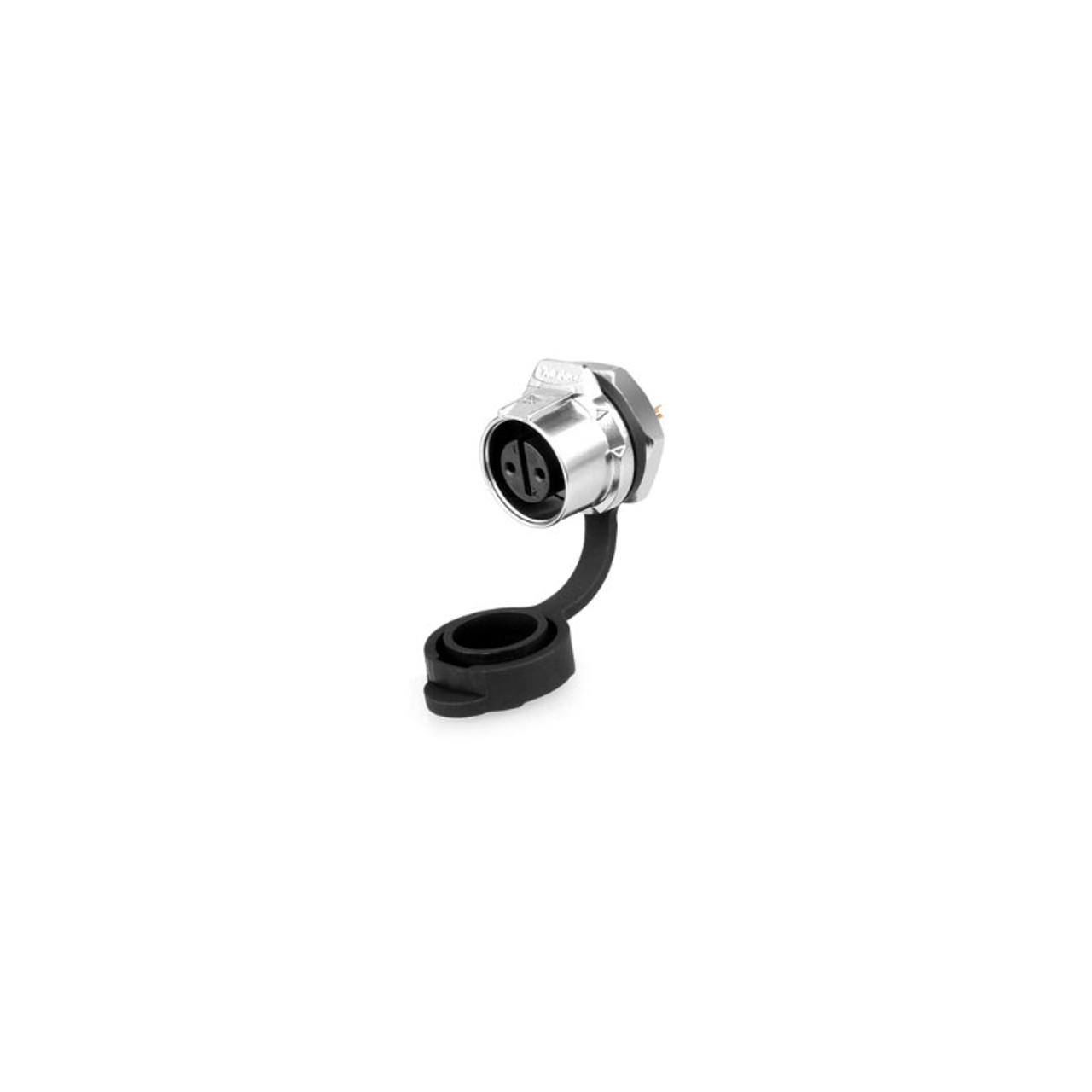

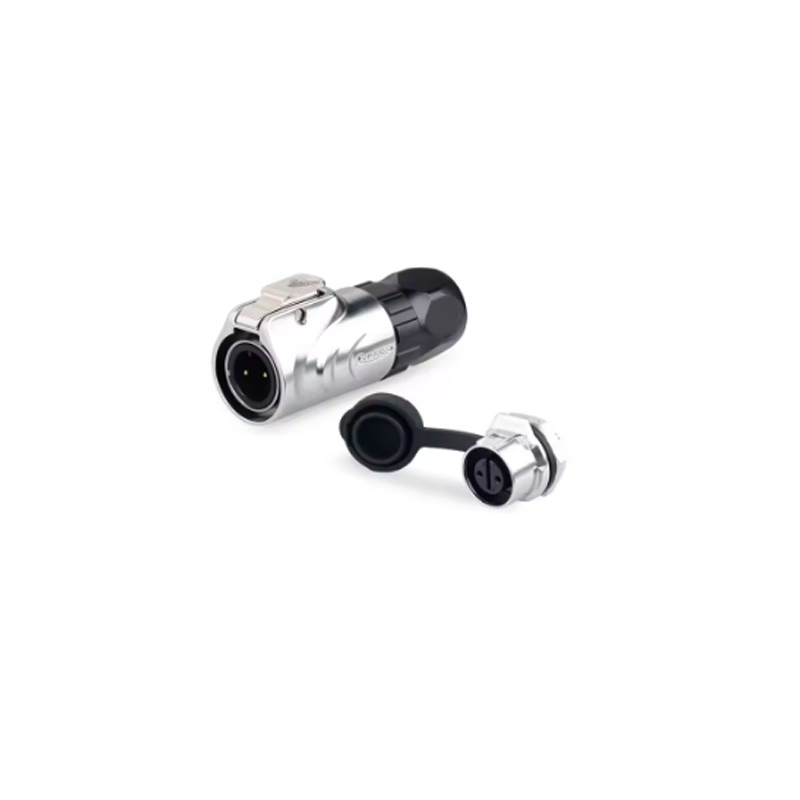

The Cnlinko LP-20-J02SX-03-101A is a 2 pin female bulkhead mount connector for power applications. Accommodates 12 AWG cable. Rated for 500V and 20 A. It locks into the corresponding male cable plug and can easily be released. Perfect for such applications as audio / visual equipment, medical devices, testing and measurement equipment, and industrial control.
- Gold plated contacts for greater corrosion protection
- High temp resistant
- Rated IP65 when connected
- Comes with waterproof cap
Specifications

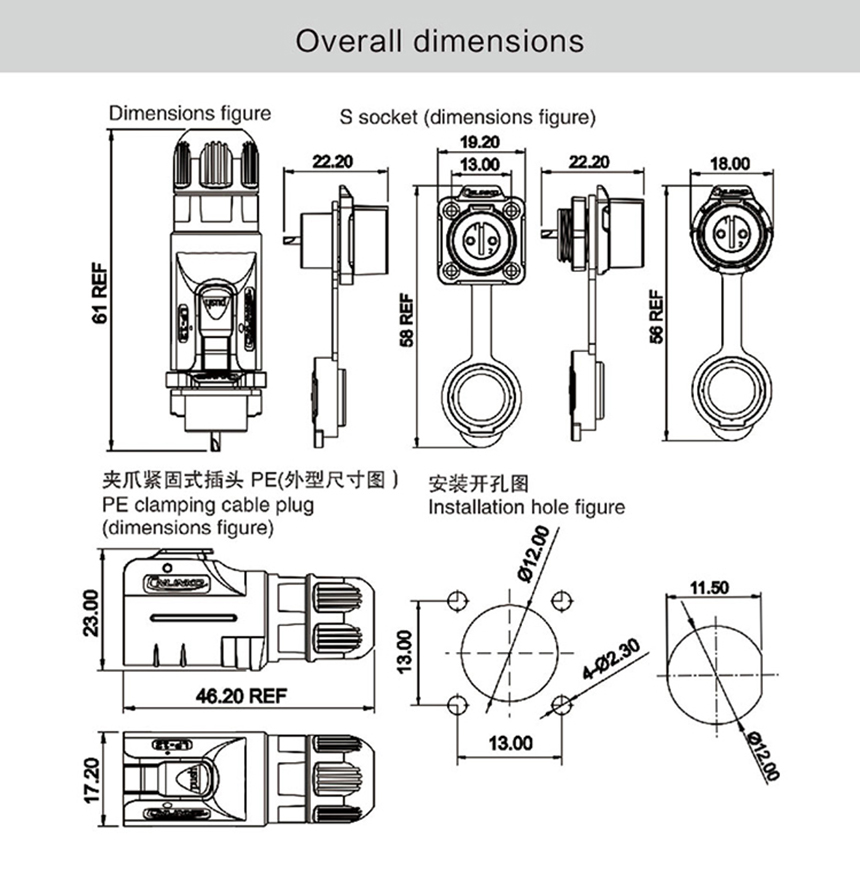

- Dimensions (without cap)- 31.4 mm Height x 30.6 mm Width x 25 mm Depth (1.23″ x 1.2″ x 0.98″‘)
- Number of Pins- 2
- Wire Gauge- 12 AWG (2.5mm2)
- Diameter Range- 12mm
- Contact Diameter- 2.7mm
- Rated Current- 20 Amps
- Operating Voltage- 500V
- Ingress Protection- IP65 (Total protection from dust and low pressure water jets from any direction)
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)
- Housing Material- Chrome Plated Metal Alloy
- Contact Material- Gold Plated Copper Alloy
- Wiring Type- Soldering
