| Connector Size |
M24 |
|---|---|
| Connection mode |
Quickly bayonet connect |
| type |
Signal Conncetors |
کانکتور 19 پین سیگنال صنعتی ضد آب IP67 مدل DH24

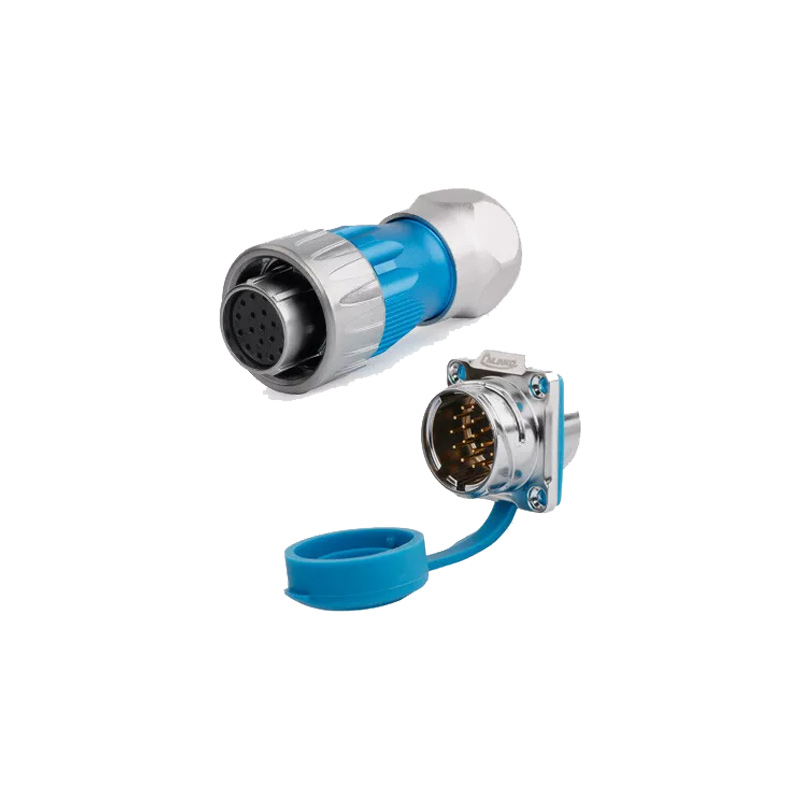

DH24 250V 5A 19Pin IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal
The Cnlinko DH-24-J19PE-03-001A is a 19 pin M24 female cable plug for signal applications. Accommodates 20 AWG cable. Rated for 250V and 5 A. It has a screw type locking system. Perfect for applications such as LED displays, industrial applications, and stage lighting equipment.
- Metal alloy housing
- Easy to grip
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion, impacts, and vibration
- Three point spiral locking for stable connection
- Bayonet connection
- Replaces DH-24-J19PE-03-001 (Has a longer solder cup)
- Compatible with older DH-24 series connectors
- Previously known as DH-24-J19PE-01-001
Specifications

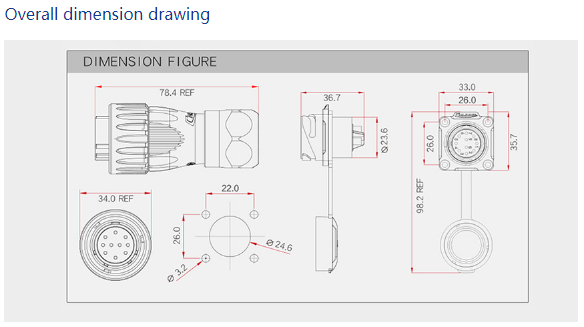

- Dimensions- 78.4 mm Length x 33.5 mm Diameter (3.09″ x 1.32″)
- Number of Pins- 19
- Wire Gauge- 20 AWG
- Diameter Range- 14 mm
- Contact Diameter- 0.5 mm
- Rated Current- 5 Amps
- Operating Voltage- 250V
- Ingress Protection- IP65/67
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)
- Wiring Mode- Soldering
- Housing Material- Chrome Plated Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
