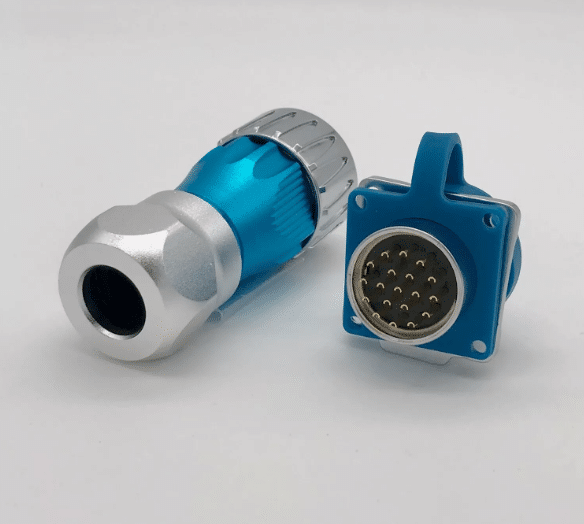

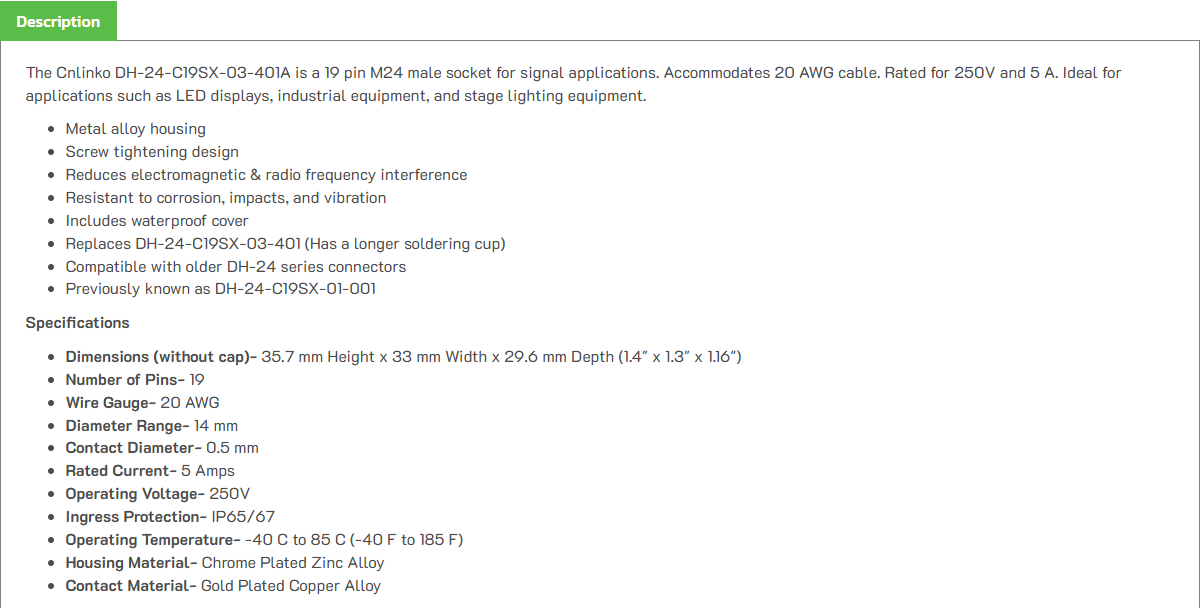

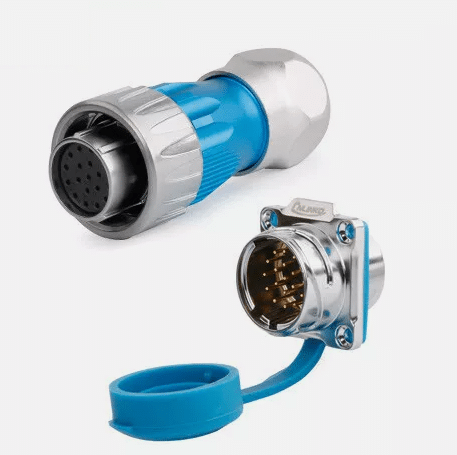

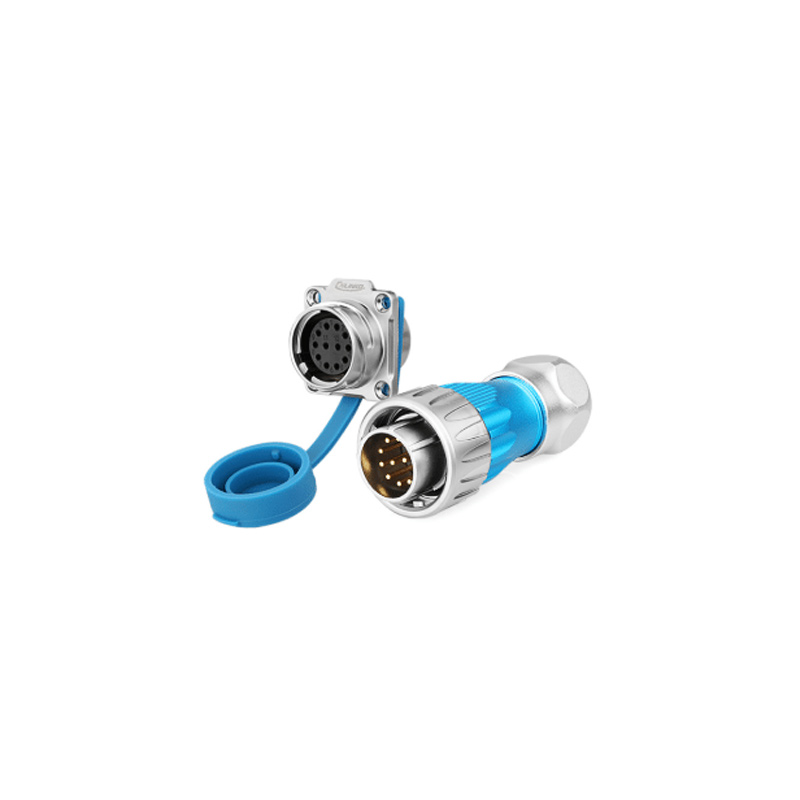

The Cnlinko DH-24-J19SX-03-401A is a 19 pin M24 female socket for signal applications. Accommodates 20 AWG cable. Rated for 250V and 5 A. Ideal for applications such as LED displays, industrial equipment, and stage lighting equipment.
- Metal alloy housing
- Screw tightening design
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion, impacts, and vibration
- Includes waterproof cover
- Replaces DH-24-J19SX-03-401 (Has longer solder cup)
- Compatible with older DH-24 series connectors
- Previously known as DH-24-J19SX-01-001
Specifications
- Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 29.6 mm Depth (1.4″ x 1.3″ x 1.16″)
- Number of Pins- 19
- Wire Gauge- 20 AWG
- Diameter Range- 14 mm
- Contact Diameter- 0.5 mm
- Rated Current- 5 Amps
- Operating Voltage- 250V
- Ingress Protection- IP65/67
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)

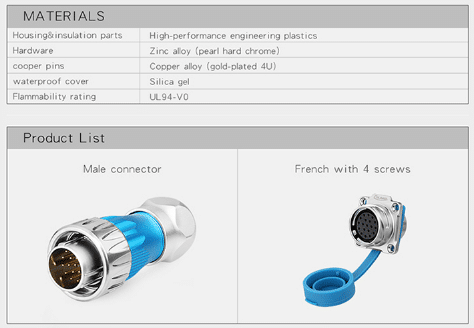

- Housing Material- Chrome Plated Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Wiring Type- Soldering
