CNLINKO is a leader in the design, manufacture, and supply of high-performance circular interconnect systems for applications requiring high system reliability for power and signaling applications. We offer a wide range of ruggedized and waterproof electronic connector solutions designed for a variety of applications.
Product Features:
Dust Resistant
Vibration resistant
Waterproof
Weatherproof
Salt water environment
Suitable for outdoor environments, etc.
کانکتور 12 پین سیگنال صنعتی ضد آب 250 ولت 5 آمپر مدل DH20

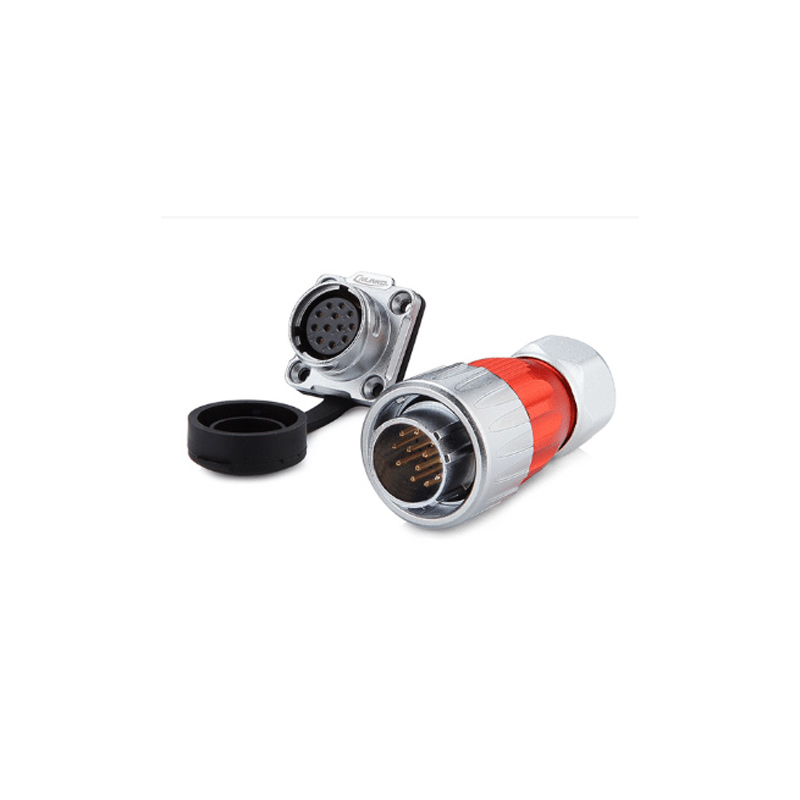

DH-20-12 pin circular four-hole waterproof aviation plug connector

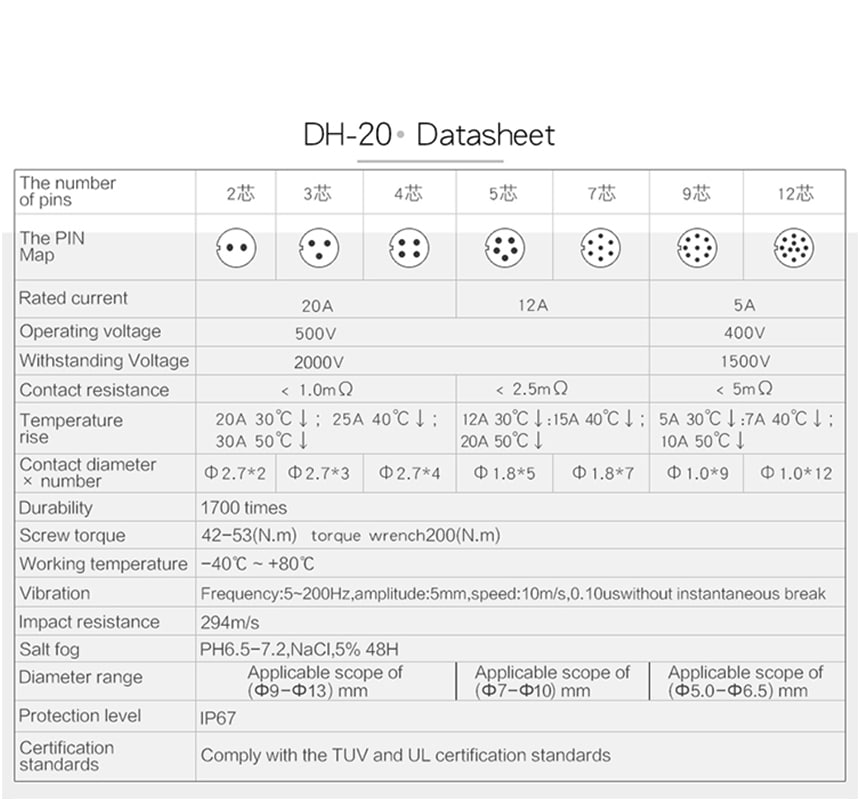

Technical Specifications

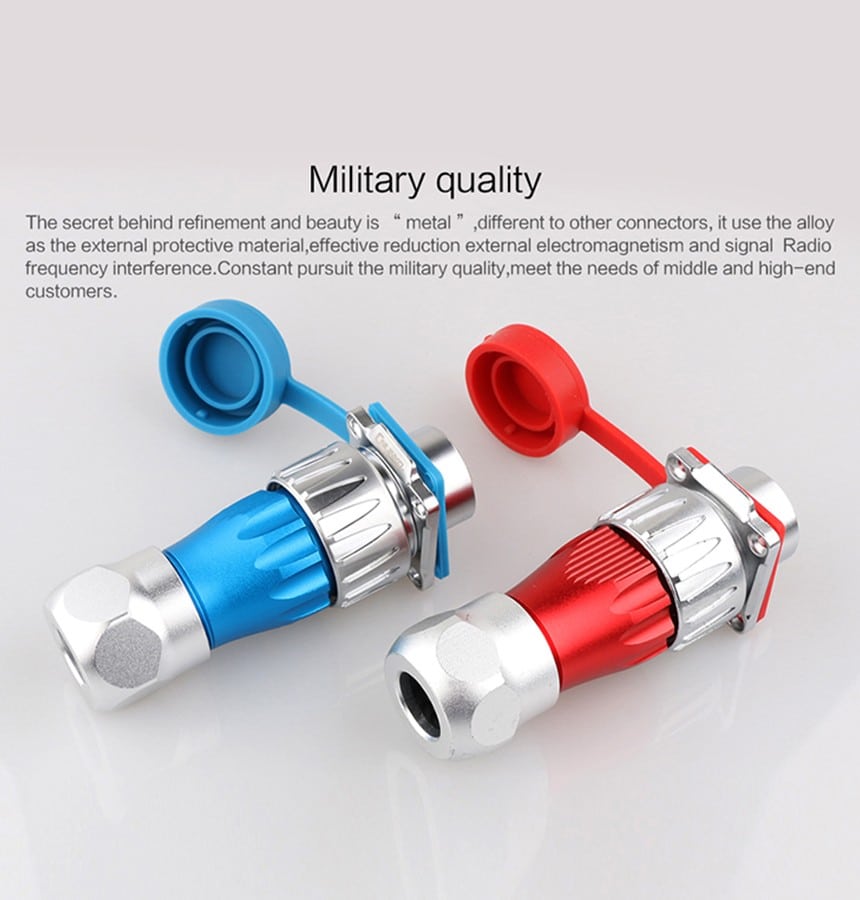

- Alloy external protective material

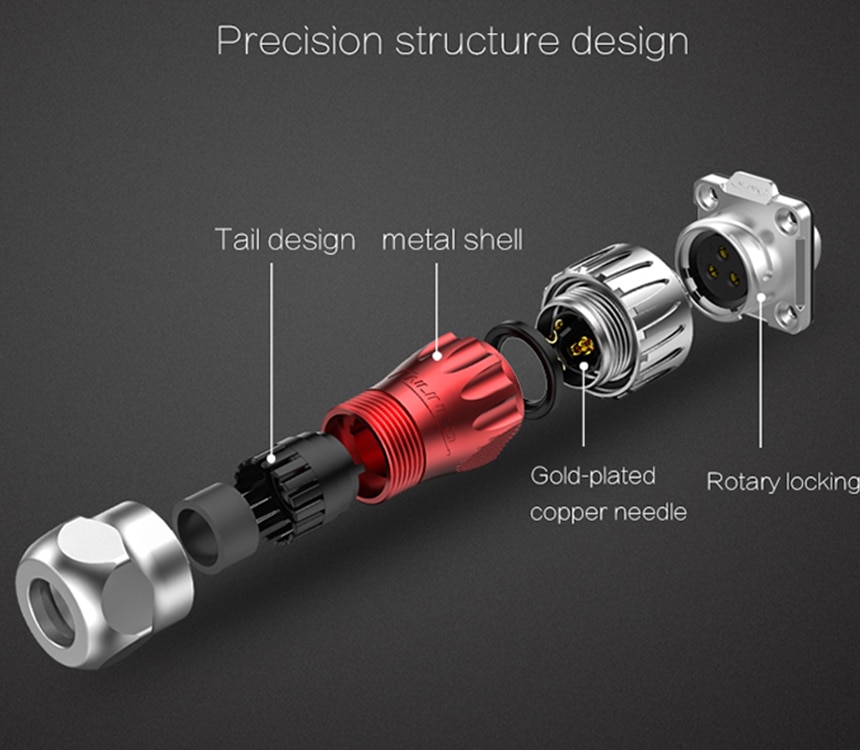

- Military standard three-point spiral locking
- IP65/67 rating when connected
-
Cable specifications: 24-26 AWG
-

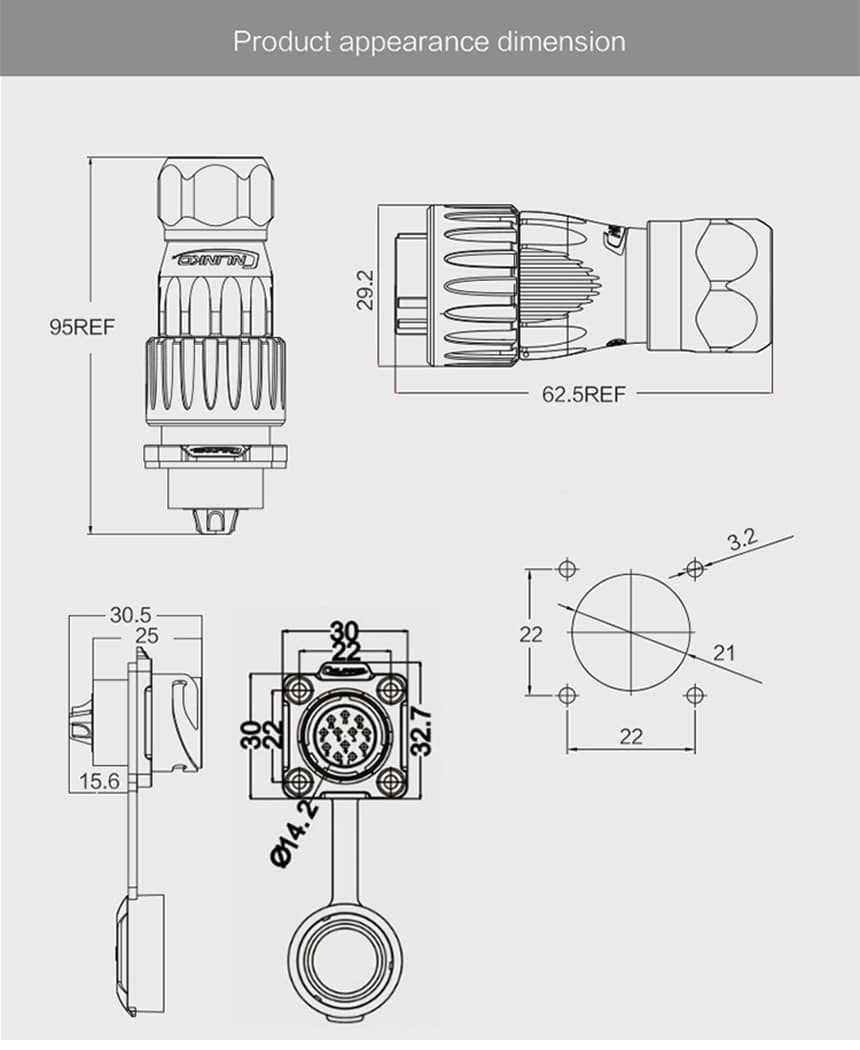

Diameter range: Φ5.5mm～Φ7mm
-
Contact diameter × number: Φ1.0×12
- Rated Current (A): 5A
-
Operating voltage (AC.V.rms): 400V
-
Contact resistance: <5mΩ
-
Withstand Voltage (AC.V) 1 minute: 2500V
-
Insulation resistance: ＞500MΩ
-
Protection level: IP65/IP67
-
Operating temperature: -40℃～80℃
-
Connection mode: 1/4 Bayonet Connection Type
-
Mounting Cable: Soldering / Crimping
-
Copper pins: Copper alloy (gold-plated 4U)
-
Flammability rating: UL94-V0
4,310,000 تومان
2 در انبار
| Brand |
CNLINKO |
|---|
0
افرادی که هم اکنون این محصول را بازدید می کنند
General info
| Brand |
CNLINKO |
|---|
| Brand |
CNLINKO |
|---|---|
| Connector Size |
M20 |
| type |
Signal Conncetors |
| material |
Metal/Plastic |
