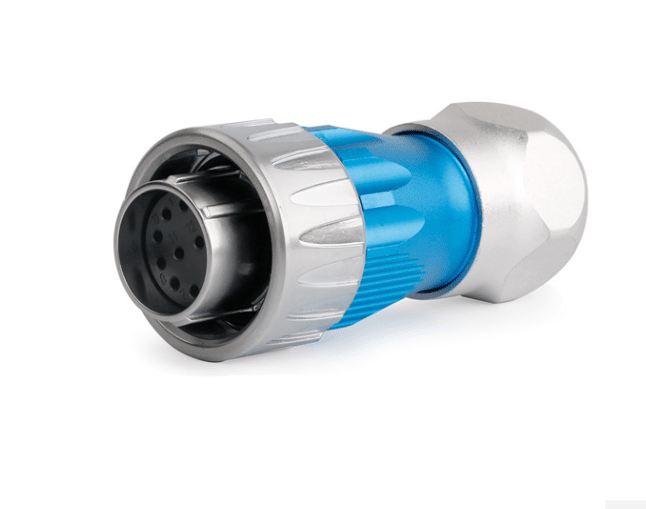

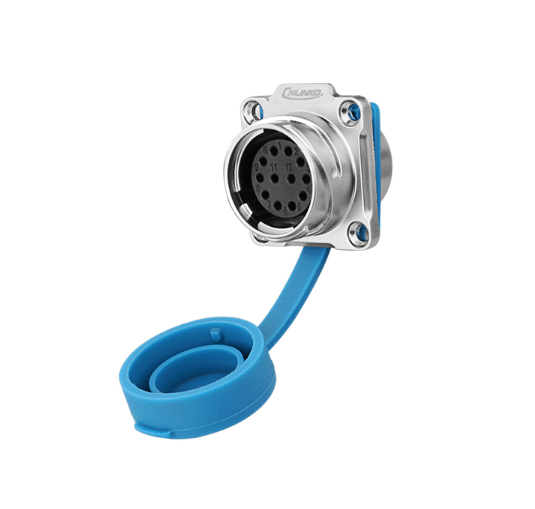

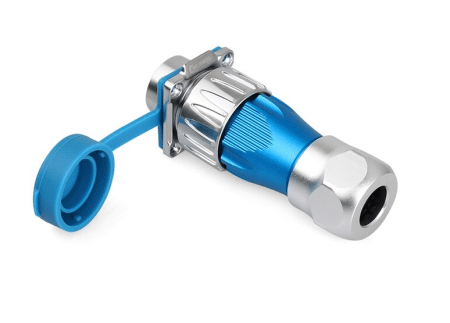

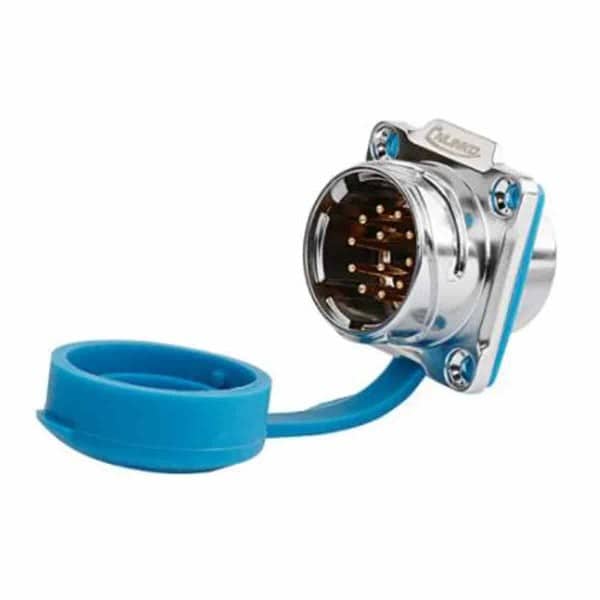

The Cnlinko DH-24-C12SX-03-401 is a 12 pin M24 male socket for power applications. Accommodates 14-12 AWG cable. Rated for 400V and 10 A. Ideal for applications such as LED displays, industrial equipment, and stage lighting equipment. Also known as DH-24-C12SX-01-001
- Metal alloy housing
- Screw tightening design

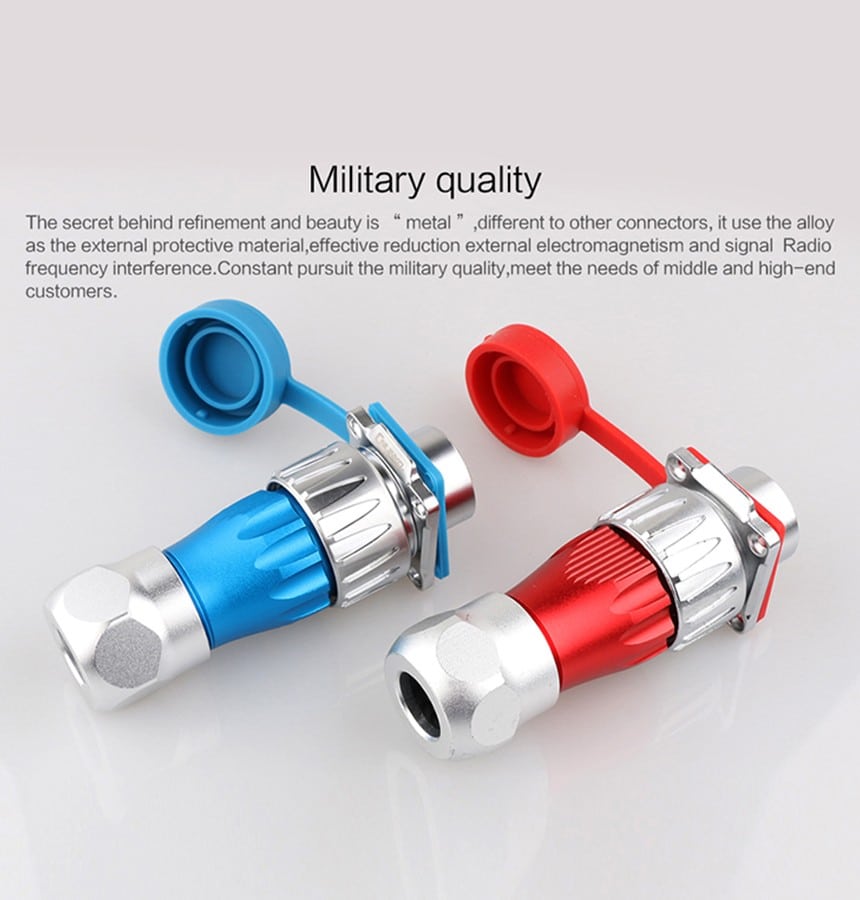

- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion
- Includes waterproof cover

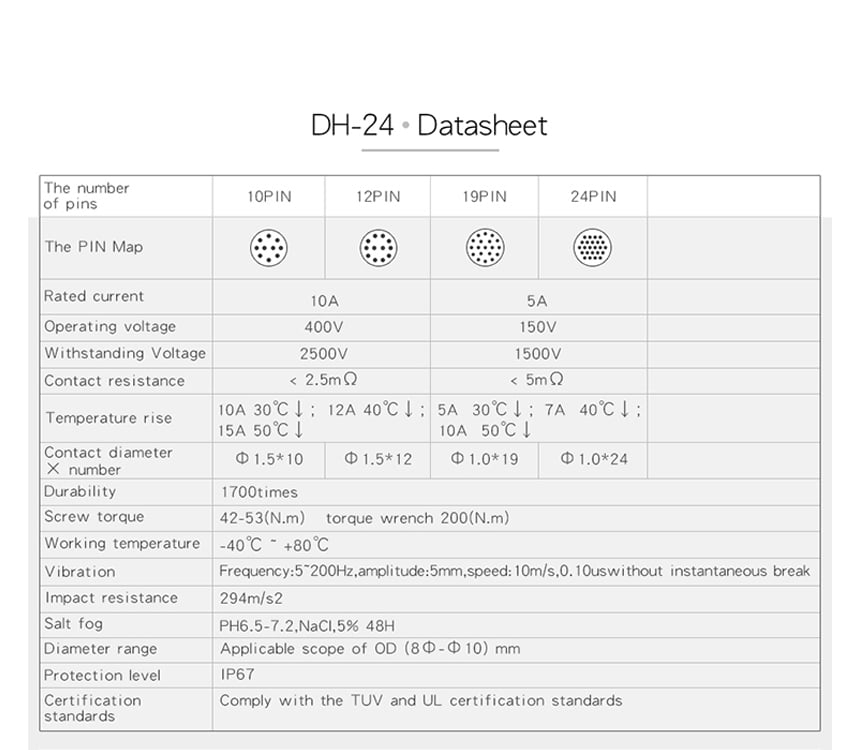

Specifications

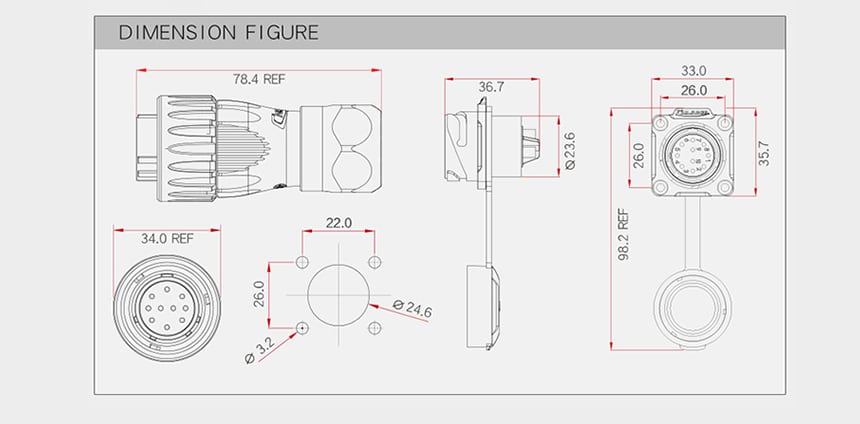

- Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 36.7 mm Depth (1.4″ x 1.3″ x 1.44″)
- Number of Pins- 12
- Wire Gauge- 14-12 AWG
- Diameter Range- 8-12 mm
- Contact Diameter- 1.5 mm
- Rated Current- 10 Amps
- Operating Voltage- 400V
- Contact Resistance- < 2.5 mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- 1700 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
