| Model: | LP-20 | Pin: | 8 Pin |
| IP Rating: | IP68 / IPX9K | Rated Current: | 1.5A |
| Rated Voltage: | 125V AC | Withstand Voltage: | 1000V AC |
| Contact Resistance Max: | 30mΩ | Insulation Resistance Min: | 500MΩ |
| Contacts: | / | Durability: | ≥2000 times |
| Wire Spec Max: | / | Wire range: | Φ6.5-Φ8.5mm |
| Transmission Rate： | CAT6 | Maximum temperature rise: | 30k |
| Work Temperature: | -25°C~+85°C（Plastic） |
کانکتور شبکه CAT6 صنعتی قفل شونده ضد آب پلاستیکی مدل LP20

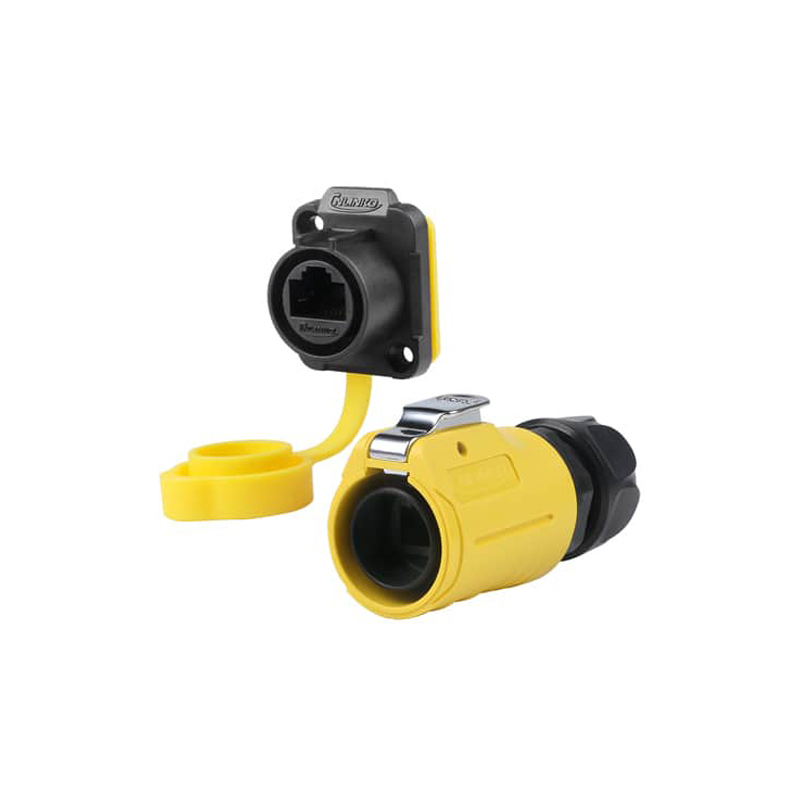

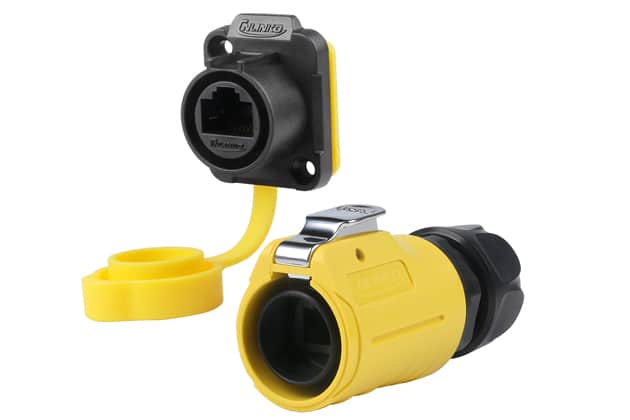

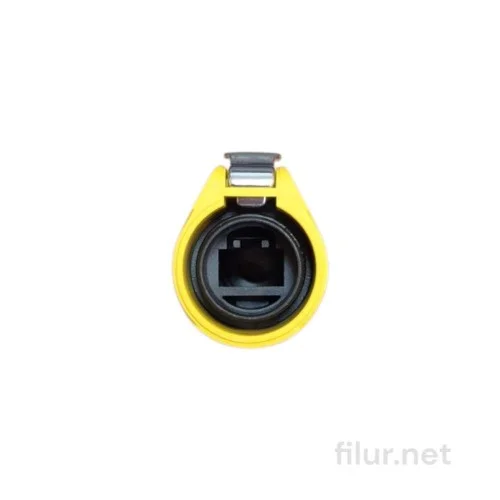

LP20 waterproof CAT6 RJ45 Connector
1. All-plastic / semi-metallic two styles are optional, which can meet the
differentiated demands of anti-interference, high strength and high corrosion
resistance in different scenarios;

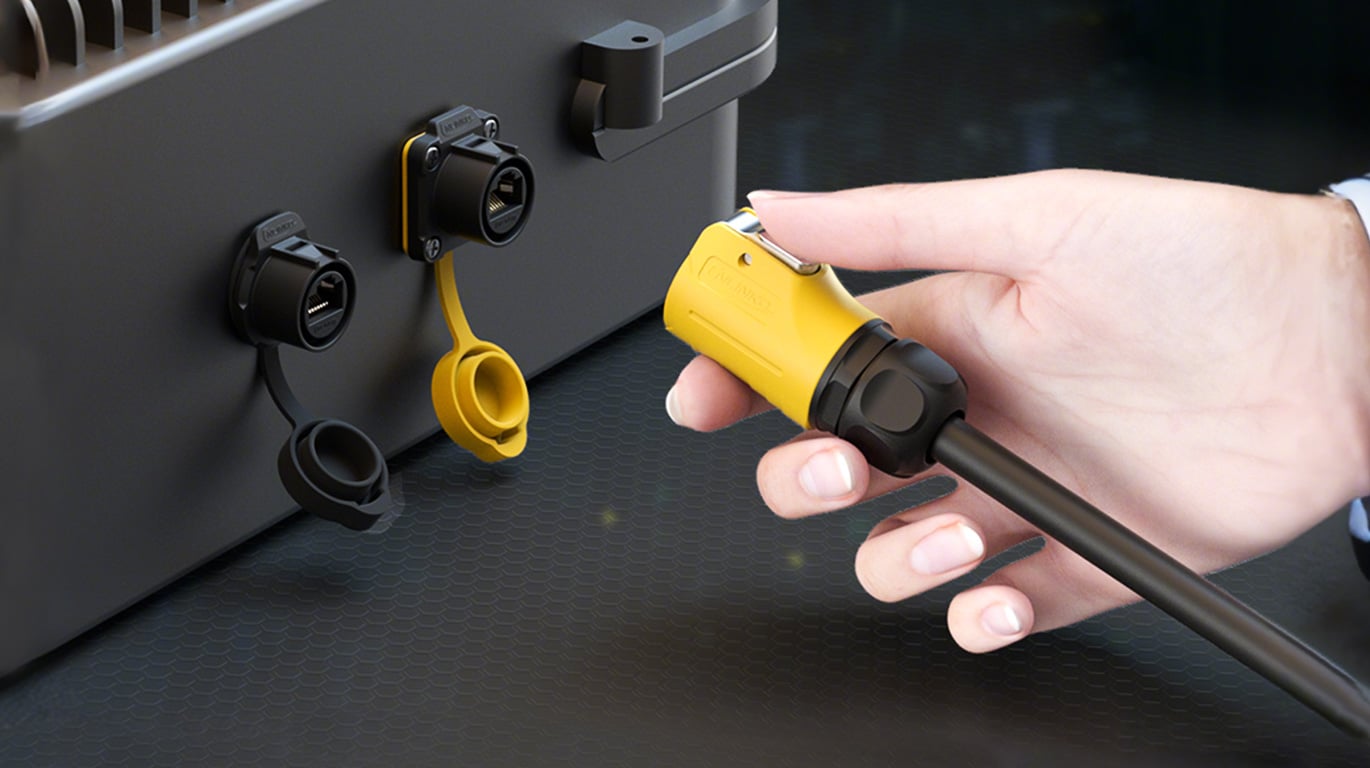

2. Adopt one key press button locking method, plug and play, fast and convenient;

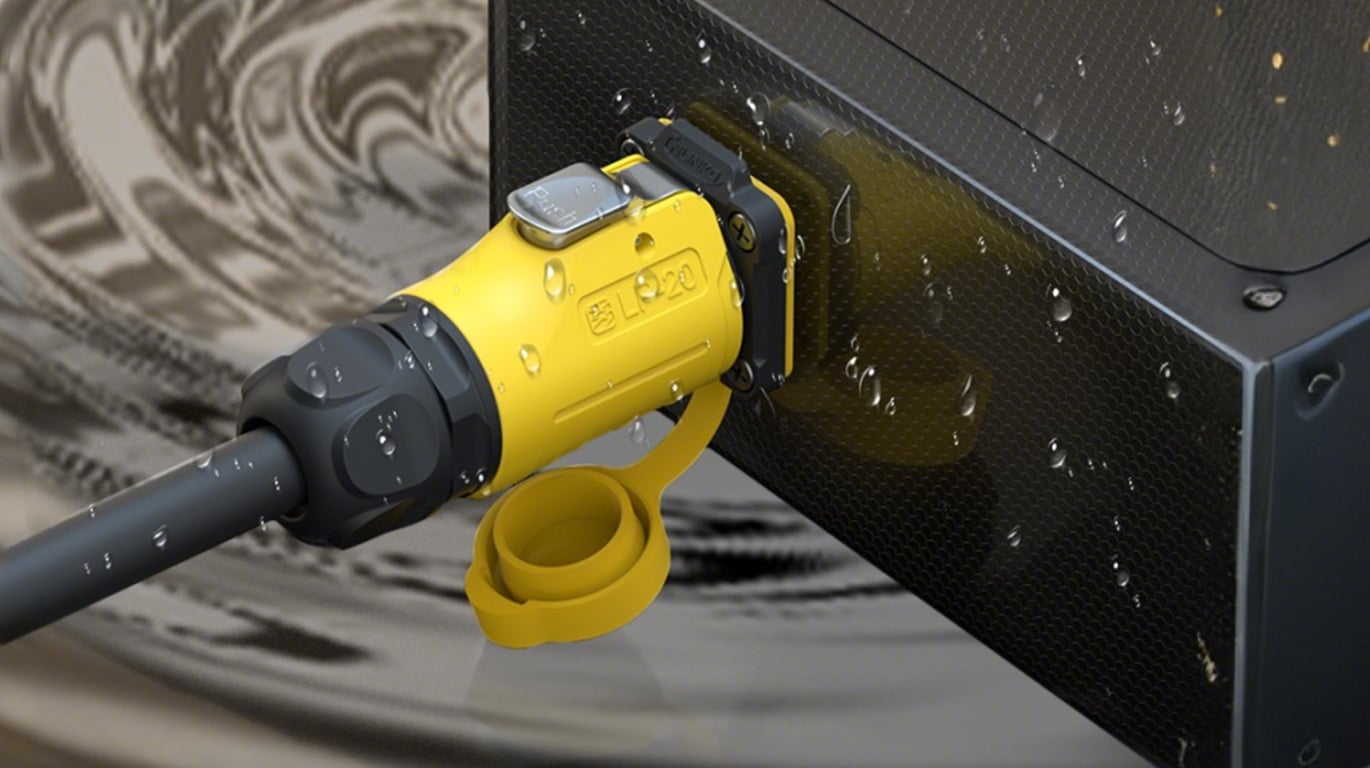

3. Precision waterproof design, with high waterproof level, no fear of wading
environment;
4. Adopt high-strength structural materials, pressure-resistant structure design,
can withstand greater vibration and shock.
Technical Specifications
- Plug-in Style
- Standard crystal connector
- Stable contact resistance
- IP68 rating when connected
-
Durability (Min): 500 uses
-
Cable Size: 26 AWG
-
Diameter Range: 6.5-8.5mm
-
Rated Current: 1.5A
-
Contact Resistance: <30mOhm
-
Withstand Voltage: 1000V
-
Operating Temperature: -40 C to 85 C
-
Housing Material: High Performance Plastic
1,610,000 تومان
2 در انبار
| Brand |
CNLINKO |
|---|
0
افرادی که هم اکنون این محصول را بازدید می کنند
General info
| Brand |
CNLINKO |
|---|
| type |
Data Connectors |
|---|---|
| Brand |
CNLINKO |
| Connector Size |
M20 |
| material |
Plastic |
