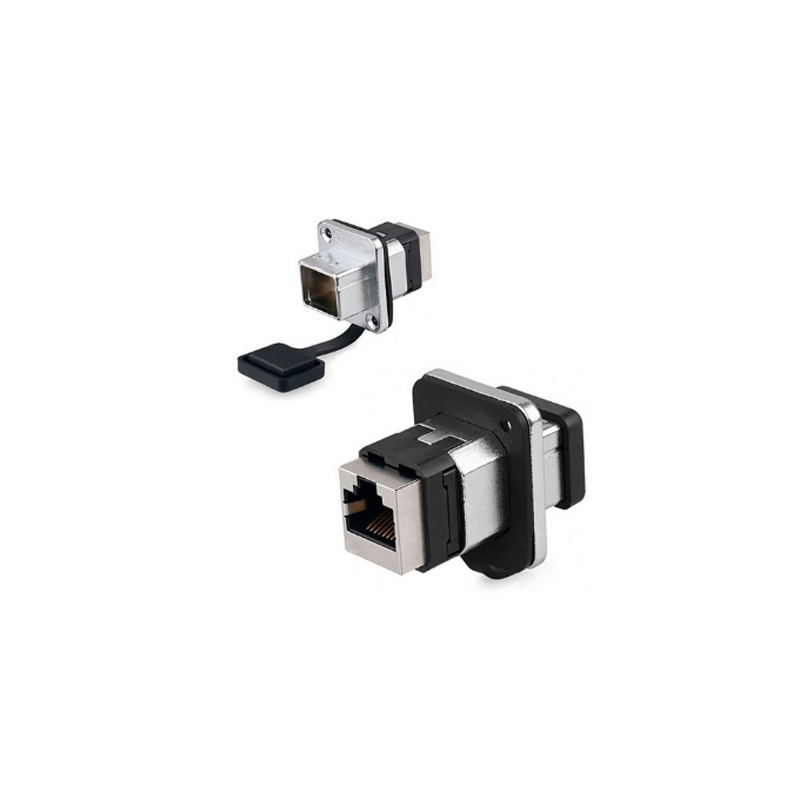

The Cnlinko YT-RJ45-JSX-05-003A is a female RJ45 socket for signal applications with straight dual Ethernet ports. Accommodates 26-24 AWG cable. Rated for 1000V and 1.5 A. It is used for industrial Ethernet in audio equipment, stage equipment, DMX lighting, and other networking applications.
- Metal housing
- Complies with D level or Cat3e standard of EIA568B and ISO/IEC11801
- Cat5e compatible
- Data transfer rate 10GB/s
- Can be used in demanding environments
- High frequency noise immunity and electromagnetic interference protection
- Includes cap
- CE & CCC approval
Specifications
- Dimensions (without cap)- 32 mm Height x 28 mm Width x 40.4 mm Length (1.26″ x 1.1″ x 1.6″)
- Number of Contacts- 8
- Wire Gauge- 26-24 AWG
- Diameter Range- 5.5-7mm
- Rated Current- 1.5A
- Operating Voltage- 1000V
- Contact Resistance- <30mOhm
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- Zinc Alloy
- Flammability Rating- UL94-V0
- Wiring Type- Soldering
