کانکتور شبکه پنلی صنعتی ضد آب قفل شونده IP67 مهره از پشت

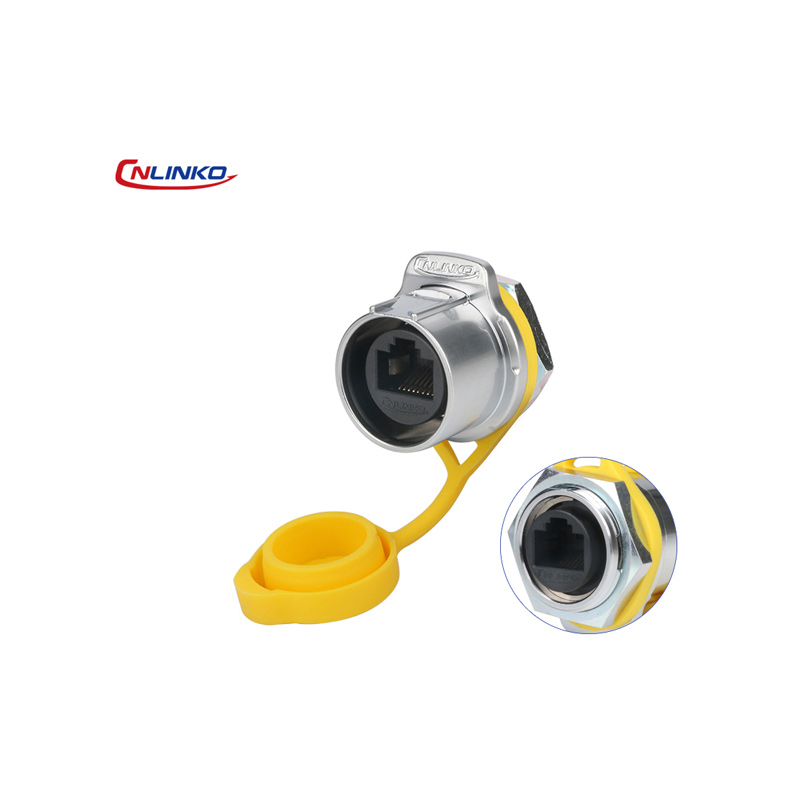

The Cnlinko LP-24-J/RJ45/213/SX-43-408 is an RJ45 surface mount socket signal connector. Rated for 1.5 A. It locks into the corresponding RJ45 plug.

• Provides stable connection
• Direct connect design
• Comes with waterproof cap
• Supports Cat6
• Previously known as LP-24-RJ45-S01

Specifications

• Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 29.8 mm Depth (1.4″ x 1.3″ x 1.17″)
• Diameter Range- 14 mm
• Rated Current- 1.5 Amps
• Rated Voltage- 125V
• Ingress Protection- IP65 (total protection from dust and low pressure water jets from any direction)
• Operating Temperature- -40 C to 85 C (-40 F to 185 F)
• Housing Material- Chrome Plated Zinc Alloy
• Wiring Type- Crimping
