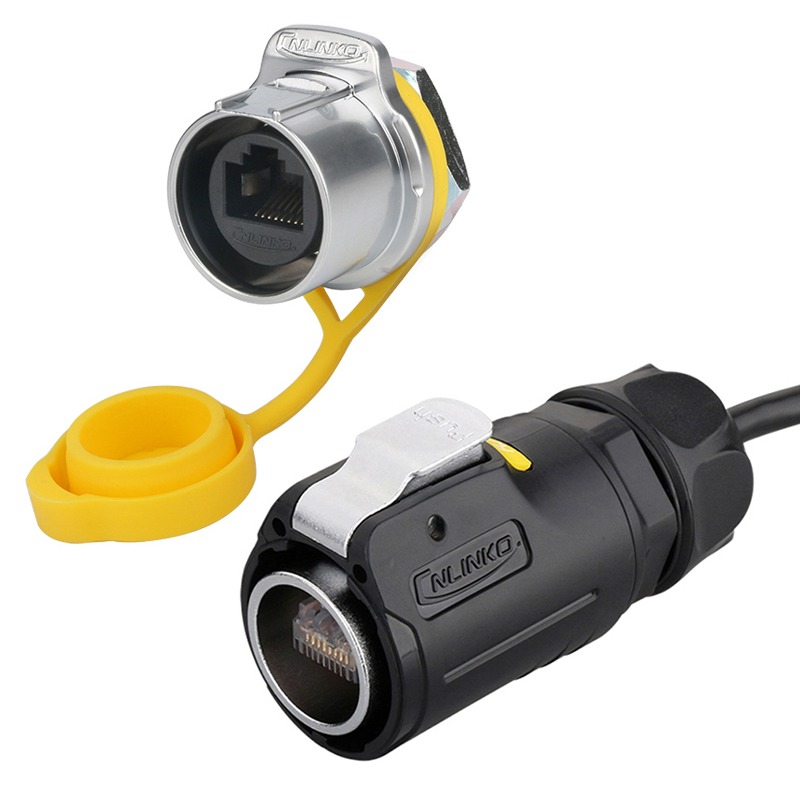

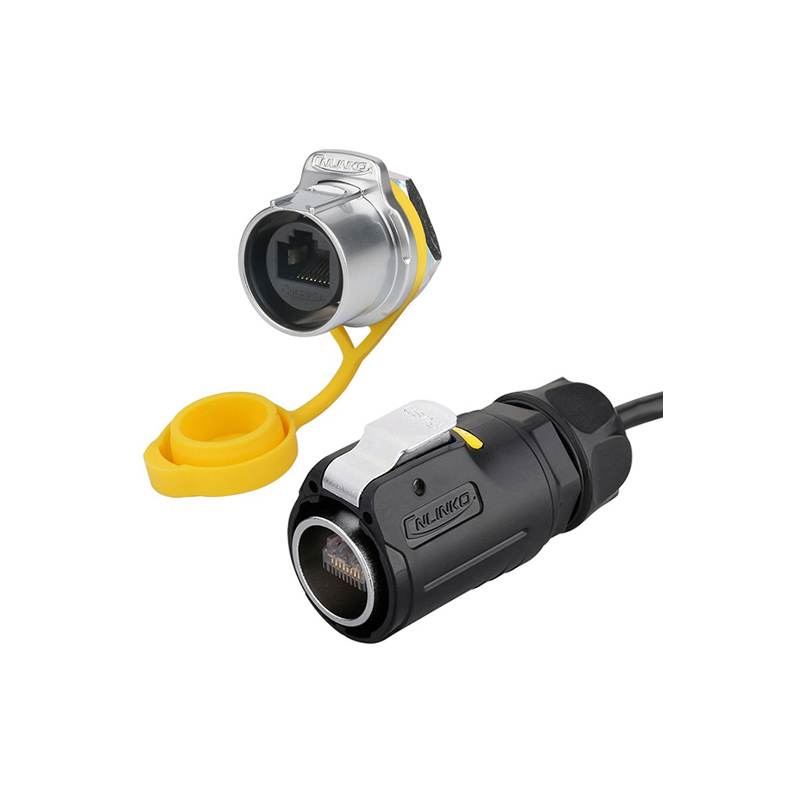

The Cnlinko LP-24-J/RJ45/213/SX-43-408 is an RJ45 surface mount socket signal connector. Rated for 1.5 A. It locks into the corresponding RJ45 plug.
- Provides stable connection
- Direct connect design
- Comes with waterproof cap
- Supports Cat6
- Previously known as LP-24-RJ45-S01
Specifications

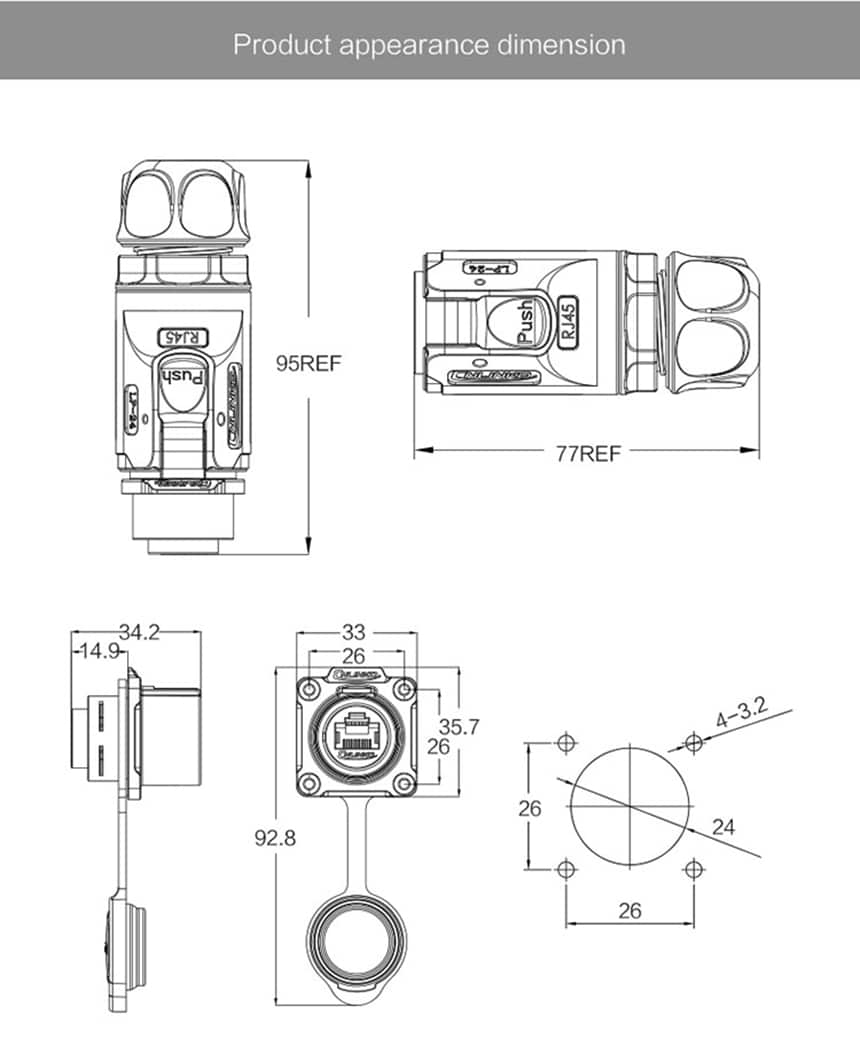

- Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 29.8 mm Depth (1.4″ x 1.3″ x 1.17″)
- Diameter Range- 14 mm
- Rated Current- 1.5 Amps
- Rated Voltage- 125V
- Ingress Protection- IP65 (total protection from dust and low pressure water jets from any direction)
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)
- Housing Material- Chrome Plated Zinc Alloy
- Wiring Type- Crimping
