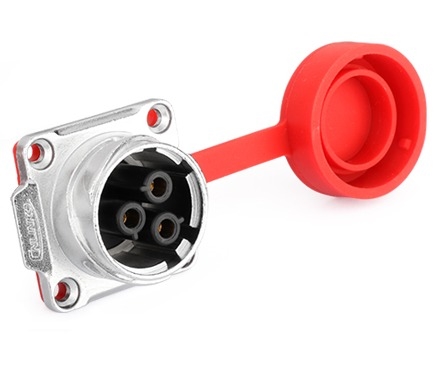

The Cnlinko DH-24-J03SX-03-401 is a 3 pin female socket for power applications. Accommodates 14-12 AWG cable. Rated for 500V and 25 A. Ideal for applications such as LED displays, industrial equipment, and stage lighting equipment. Also known as DH-24-J03SX-01-001
- Metal alloy housing
- Screw tightening design
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion
- Heat & pressure resistant
- Includes red waterproof cover
Specifications

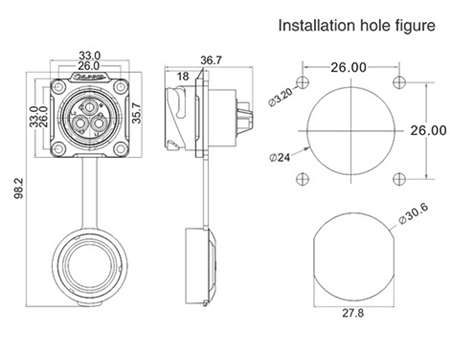

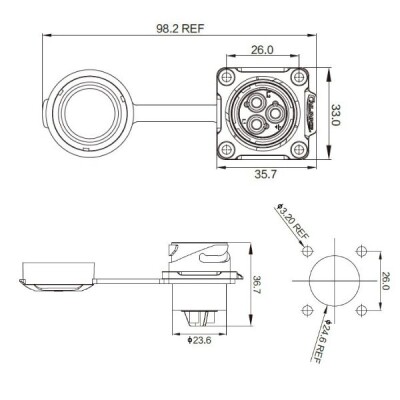

- Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 36.7 mm Depth (1.4″ x 1.3″ x 1.44″)
- Number of Pins- 3
- Wire Gauge- 14-12 AWG
- Diameter Range- 8-12mm
- Contact Diameter- 3mm
- Rated Current- 25A
- Operating Voltage- 500V
- Contact Resistance- < 1mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Approvals- CE, CCC, RoHS, ISO9001
