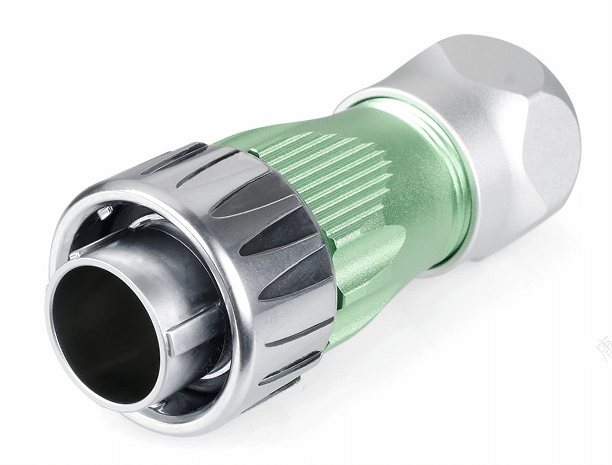

The Cnlinko DH-24-C/LC/015/PE-43-002 is a fiber optic plug signal connector. Accommodates single mode LC style double fiber optic male cable. Screw type locking system.
- Metal alloy housing
- Reduces electromagnetic & radio frequency interference
- Resistant to corrosion, impacts, & vibration
- Heat resistant
- Dual channel
- Cable not included
- Fiber optic indicated by green housing color
Specifications

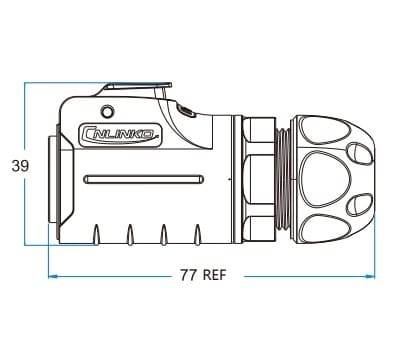

- Dimensions- 78.4 mm Length x 33.5 mm Diameter (3.09″ x 1.32″)
- Ingress Protection- IP65/67
- Cable Diameter- 4.5 – 6mm
- Operating Temperature- -40 C to 85 C (-40 F to 185 F)
- Housing Material- Chrome Plated Zinc Alloy
- Wiring Type- Soldering
