Technical Information
Electrical parameters
Potentiometer type
| Power supply voltage | <36Vdc |
| Total resistance value | 2KΩ, 4KΩ, 5KΩ, 10KΩ |
| Electrical angle | ± 18 ° |
| Median voltage | 48% ~ 52% (relative power supply voltage) |
| Median dead zone angle | ± 2.5 ° |
| Potentiometer maximum voltage | 32Vdc |
| Potentiometer allows maximum power consumption | 0.25W |
Hall type
| Power supply voltage | 5.0 ± 0.5Vdc |
| Power supply current | <11mA (each Hall sensor) |
| Limit allowable overvoltage | 20Vdc |
| Reverse limit allowable voltage | -10Vdc |
| Linear error of output voltage | <± 0.2V |
Direction switch
| Load capacity | 2mA @ 30Vdc (resistive load) |
| Starting angle | ± 5 ° |
| Contact resistance | <200Ω |
With conversion circuit
| Power supply voltage range | 18 ~ 36Vdc (U 21 ~ U 24) |
| 9 ~ 36Vdc (current output) | |
| Power consumption current | <20mA |
| Maximum output current | 10mA (at standard voltage output) |

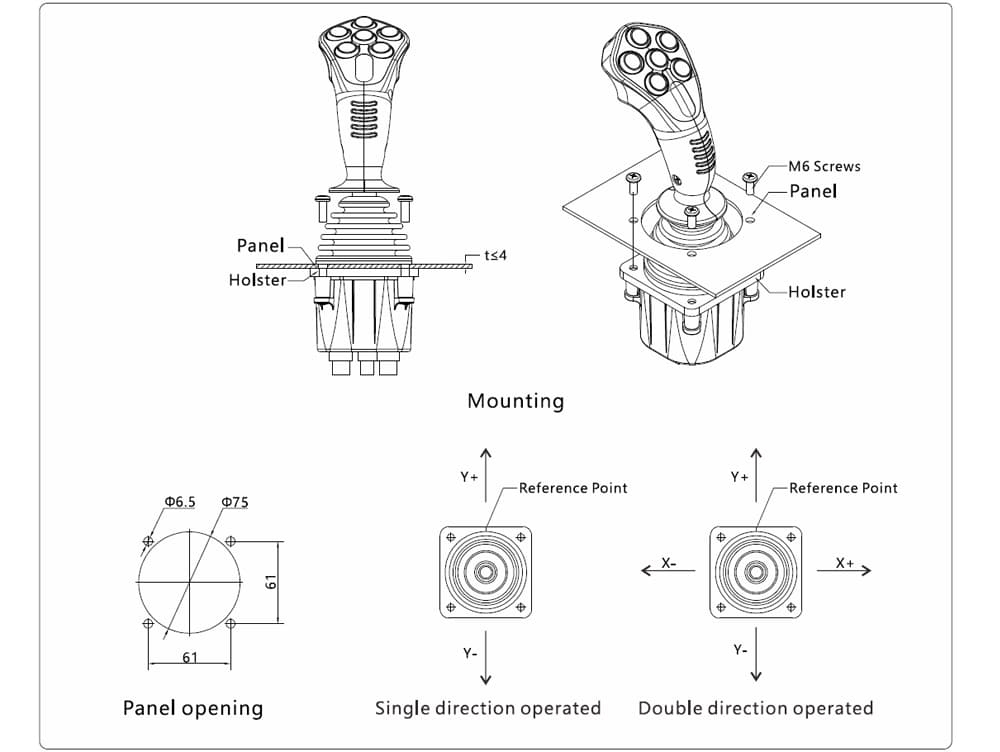

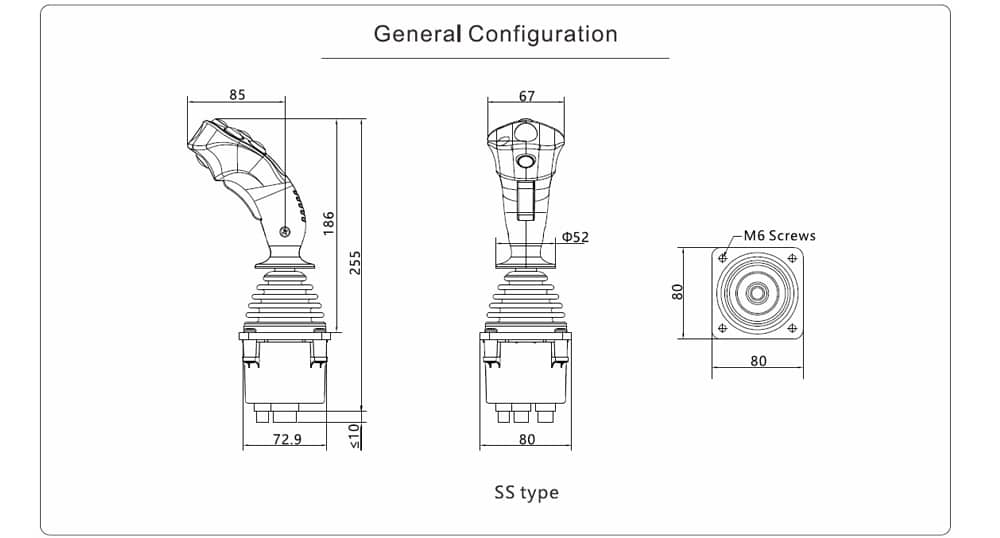

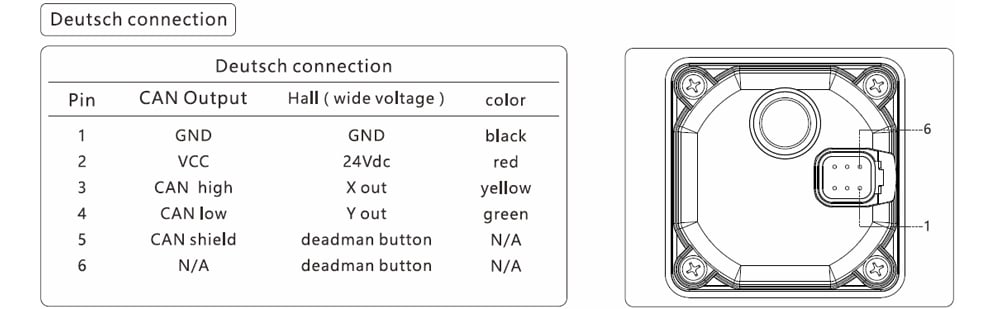

CAN bus type
| Power supply voltage | 9 ~ 36Vdc |
| CAN version CAN | 2.0B |
| Protocol | J1939 |
| connector | 6-pin socket (Deutsch) |
Micro Switch
| Load capacity | 4A @ 30Vdc (resistive load) |
| Service life | more than 30 million times (mechanical) |
| 200,000 times or more (electrical) | |
| Insulation resistance | > 100MΩ (500Vdc insulation resistance meter) |
| Starting angle |
± 3 ° ~ ± 5 ° |
