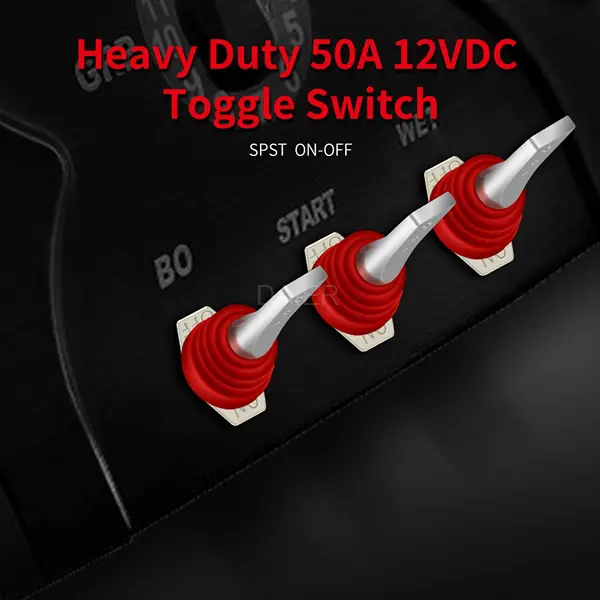

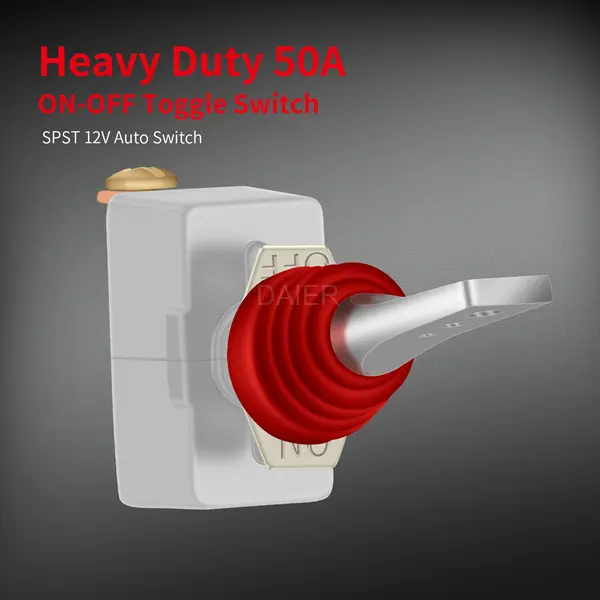

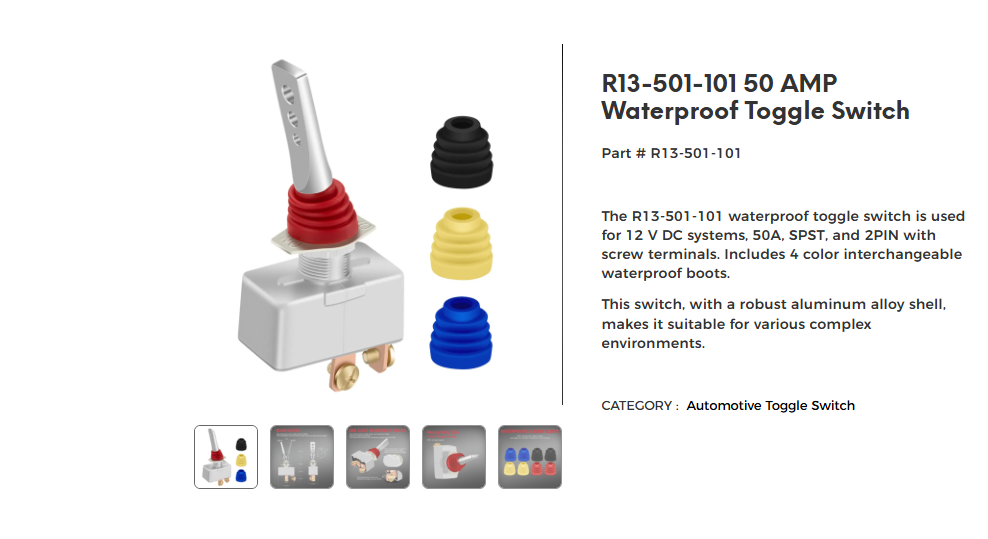

R13-501-101 Heavy Duty Waterproof SPST 50A 12VDC Toggle Switch
About this item

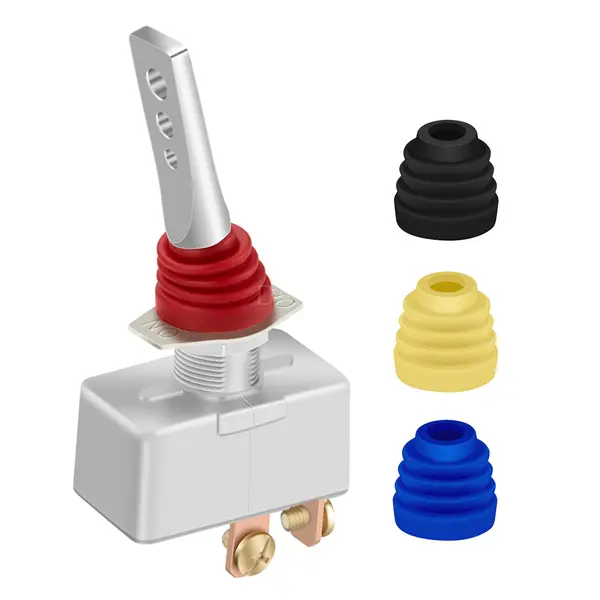

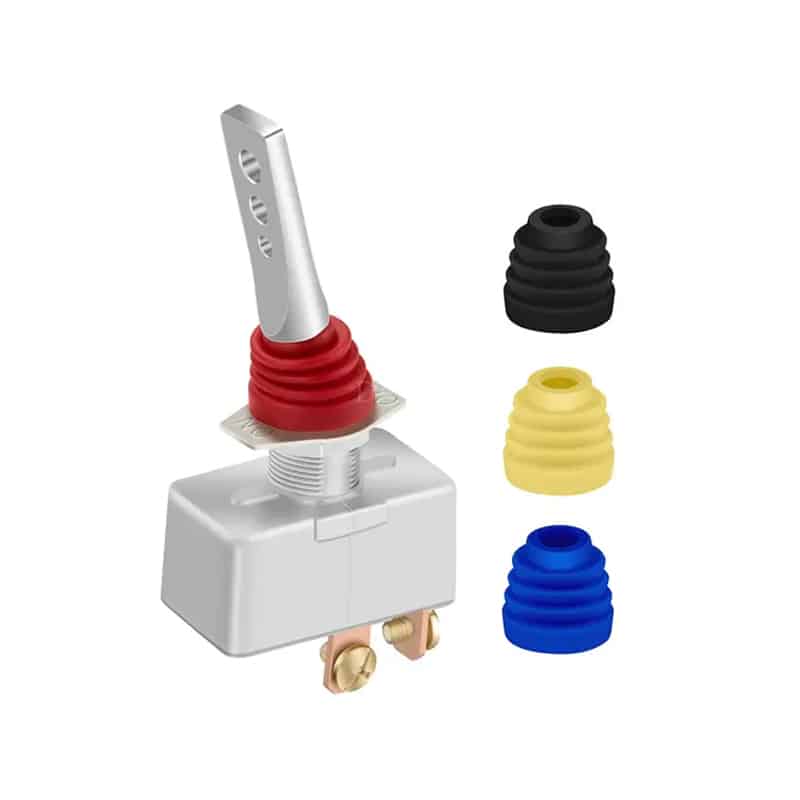

1 Batch include 1 Switches & 4 Rubber Boot

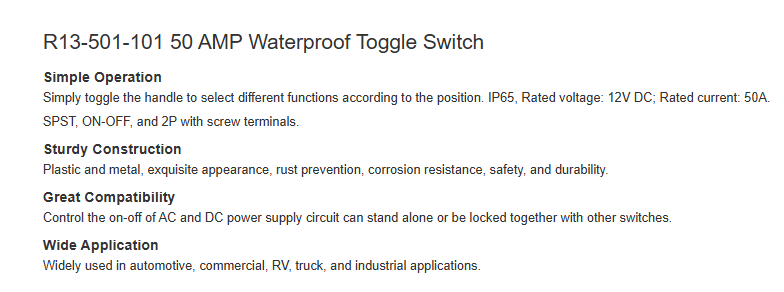

【Rating&Function】- This marine toggle switch is heavy duty, can reach 50 Amp 12V DC. It’s waterproof toggle switch with 2 pin, SPST design (single pole double throw), designed with rocker style, easy to turn ON/ OFF.

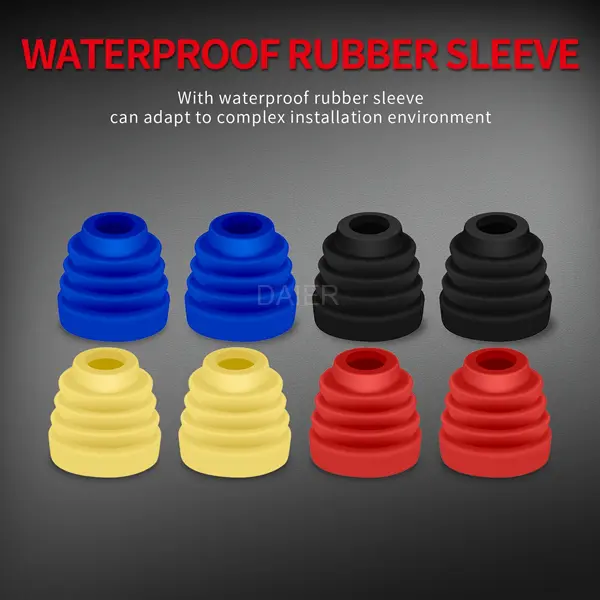

【Waterproof Toggle Switch】- The toggle switch with rubber boot covered to be IP65 waterproof, 4 colors of covers (black, amber, red, blue) for your choose.

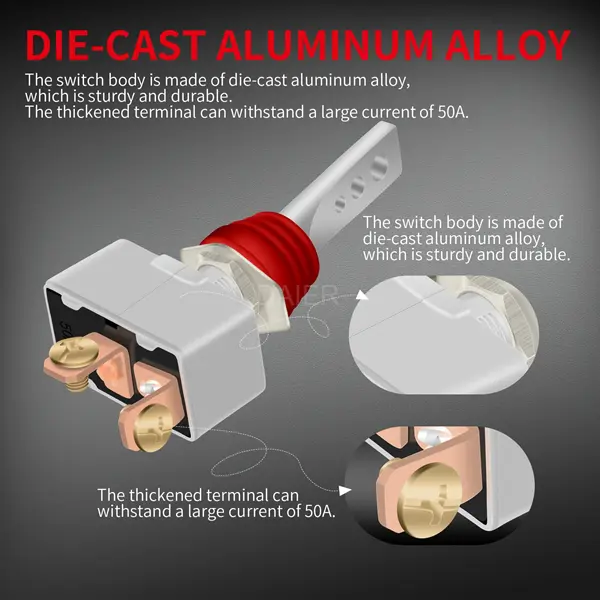

【Material】- This heavy duty toggle switch is made by aluminum and copper, with a sturdy aluminum alloy shell, making it suitable for various complex environments. The thickened terminal can withstand a large current of 50A.
【Application】 -Automotive ON OFF SPST toggle switch is widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamp, fog lamps, dome light etc.
550,000 تومان
2 در انبار

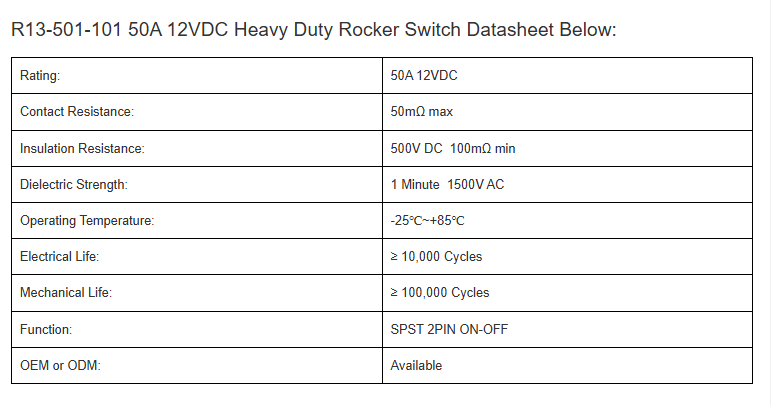

Spec
| Part NO | R13-501-101 |
| Rating: | 50A 12VDC |
| Material: | Aluminum, Copper |
| Finish Type: | Chrome |
| Waterpoof Degree: | IP65 |

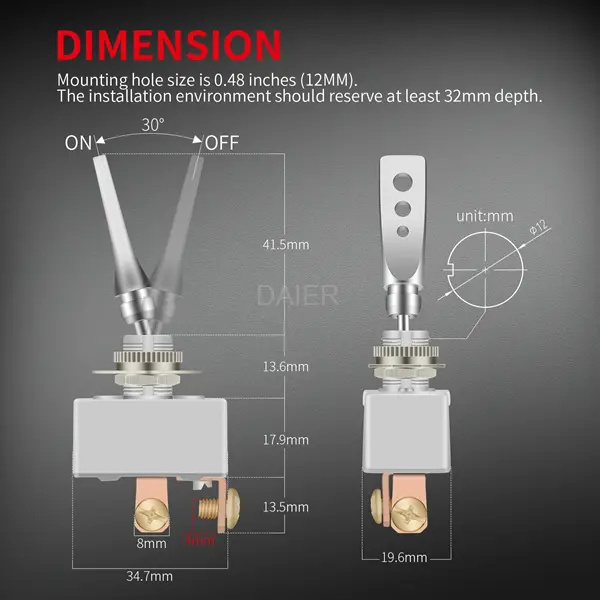

| Panel Cut-Out Size: | 0.47 inches(12mm) |

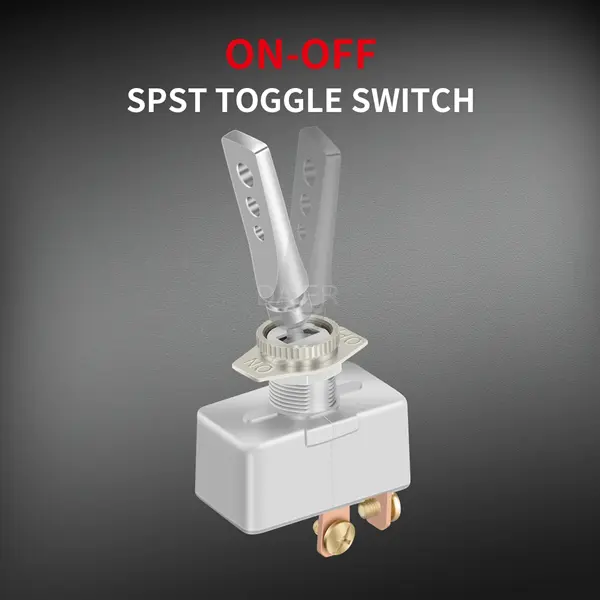

| Function: | ON-OFF SPST |
| Terminal: | 2 Pins |
| Connector Type | Screw Terminal |
| Contact Resistance: | ≤50mΩ |
| Insulated Resistance: | ≥100MΩ |
| Operating Temperature: | -25℃~+85℃ |
| Electrical Life: | ≥10,000 Cycles |
| Switch Special Features |
Heavy Duty ,Waterproof |
|---|---|
| Switch Type |
Toggle Switch |
| Switch Voltage |
DC |
