| Brand |
CNLINKO |
|---|---|
| type |
Signal Conncetors |
| Protection Level |
IP67 |
| Connector Size |
M12 |
کانکتور 8 پین سیگنال صنعتی ضد آب مهره از پشت 100 ولت، 3 آمپر مدل LP12

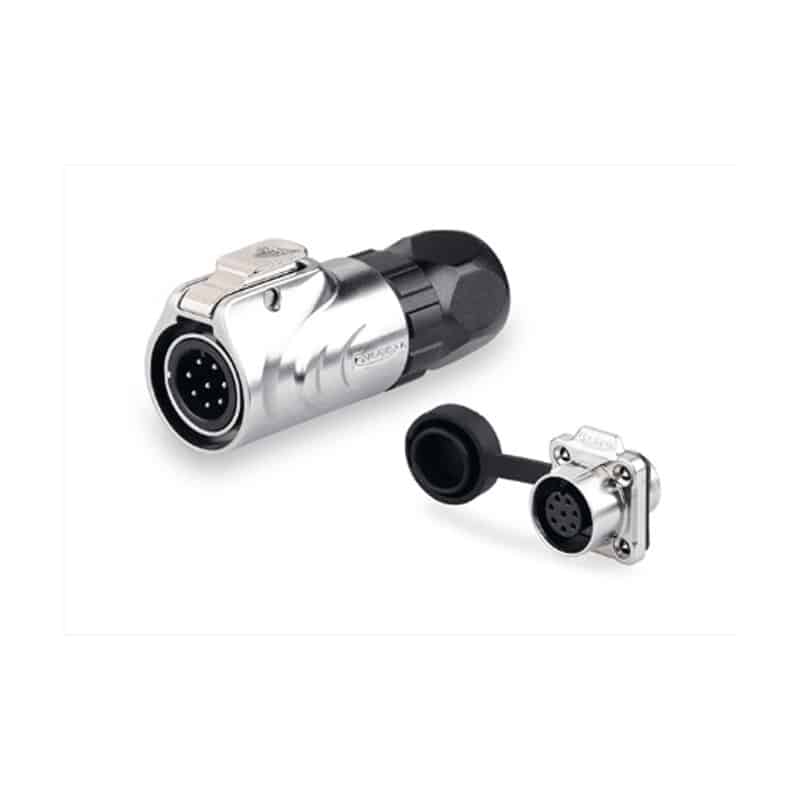

LP12 3A 8Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Solder Terminal
| Brand: | CNLINKO |
| Series: | LP-Serie, LP-12 |
| Version (Plug / Chassis): | Chassis version |
| Connector type: | Power |
| Connection mode: | Push-button latch |
| Number of contacts: | 3 |
| Contact diameter in mm: | 3 x Ø 1.00 mm |
| Gender (M / F): | Female connector |
| Connector housing color: | Black |
| Cable diameter min. in mm: | Ø 1 mm |
| Cable diameter max. in mm: | Ø 7 mm |
| Cable connection size max. in mm: | Ø 0.5 mm |
| Cable connection size max. in AWG: | AWG 24 |
| Wiring mode: | Solder contact |

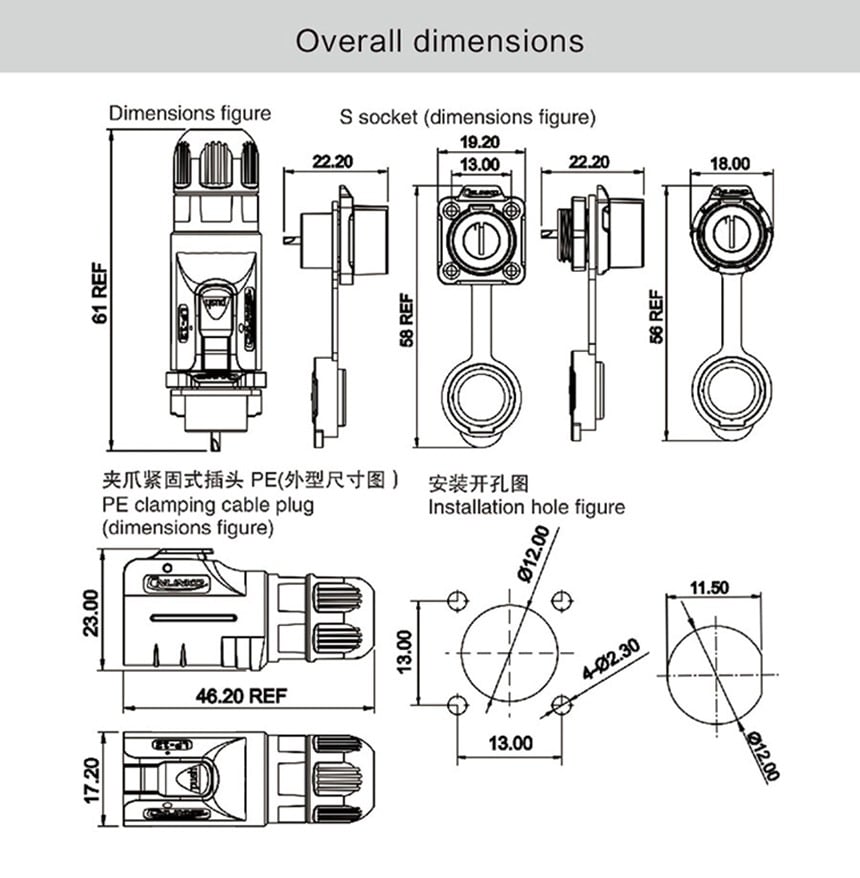

| Installation diameter in mm: | Ø 12.00 mm |
| Installation fixing height x width in mm: | 13.00 mm x 13.00 mm |
| Number of mounting holes: | 4 |
| Mounting hole diameter mm: | 2.3 mm |
| Insulation component: | High performance plastics |
| Material connector housing: | Zinc alloy (nickel plated) |
| Material contact: | Copper alloy (gold plated) |
| Waterproof component: | Silicagel |
| Working temperature minimum: | -40° |
| Working temperature maximum: | +80° |
| Plug cycle: | ≥ 1700 |
| Salt spray test: | PH 6.2 – 7.2, NaCI 1.5% 48h |
| IP protection class according to EN60529 2000: | IP65, IP67 |
| Classification flammability of plastics: | UL94-V0 |
| ROHS according to EN62321-1: | Yes |
| Country of origin: | China |
| high voltage rating (VAC): | 1500 V |
| Operating voltage (VAC.RMS): | 125 V |
| max. Rated current (A): | 5 A |
| Insulation resistance: | 500 MΩ |
| Contact resistance: | < 5 mΩ |
3,270,000 تومان
15 در انبار
