The Cnlinko DH-20-J05SX-03-401 is a 5 pin female socket for power applications. Accommodates 18-16 AWG cable. Rated for 500V and 12 A. Ideal for applications such as LED displays and stage lighting equipment. Also known as DH-20-J05SX-01-001

• Metal alloy housing
• Screw tightening design
• Reduces electromagnetic & radio frequency interference
• Resistant to corrosion
• Heat & pressure resistant
• Includes waterproof cover

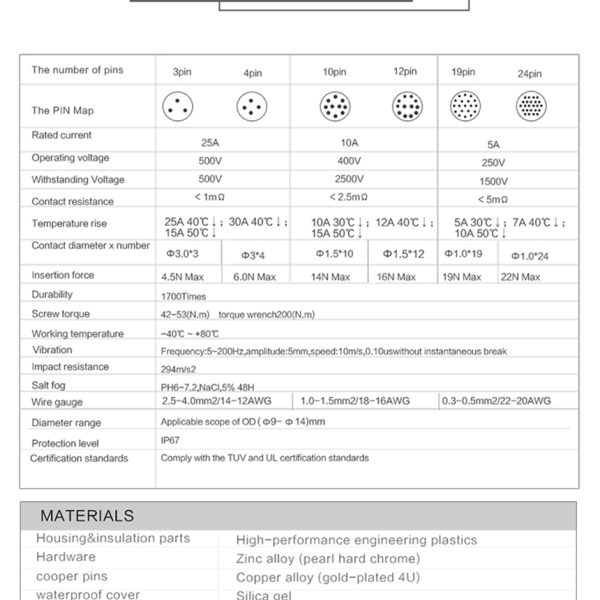

Specifications

• Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
• Number of Pins- 5
• Wire Gauge- 18-16 AWG
• Diameter Range- 7-9mm
• Contact Diameter- 1.8mm
• Rated Current- 12A
• Operating Voltage- 500V
• Contact Resistance- < 2.5mOhm
• Withstanding Voltage- 2500V
• Insulation Resistance- > 500MOhm
• Ingress Protection- IP65/67
• Durability- > 500 times
• Operating Temperature- -40 C to 80 C (-40 F to 176 F)
• Housing Material- Zinc Alloy
• Contact Material- Gold Plated Copper Alloy
• Flammability Rating- UL94-V0
• Wiring Type- Soldering
• Approvals- CE, CCC, RoHS, ISO9001

1. Brand: Cnlinko
2. MPN: LP-24-J/HDMI2/213/SX-43-401
3. Type: HDMI 2.0
4. Input current: 0.5A
5. Voltage: 30V
6. Cable range: Φ5.0 – Φ6.5mm
7. Connection mode: Lock
8. Contact parts: 10

Features:

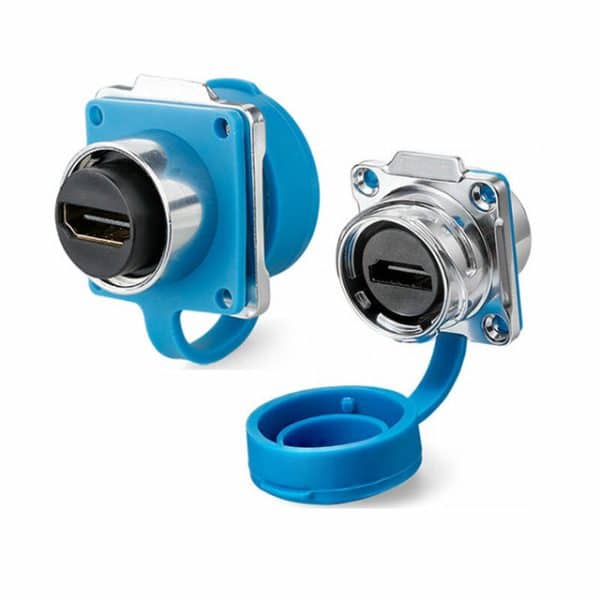

1. Waterproof HDMI HD new version 2.0
2. 4K ultra high quality image transmission
3. For use in harsh environments with protection level IP67 and operating temperature from – 40 ° C to 80 ° C
4. Stable and reliable – withstands a tensile strength of 20 kg without falling
5. The maximum rated power for the data connector is max. 0.5 amps.
6. Special plastic construction and gold-plated contacts guarantee long service life and wear-resistant and crack-free
7. Automatic synchronization of audio and video data transmission
8. Stable HD with non-flashing screen
9. It can interact with gaming consoles and large TV screens
10. Great application – IPC. audio and video servers, industrial cameras, display, screens, HD TV, floodlights

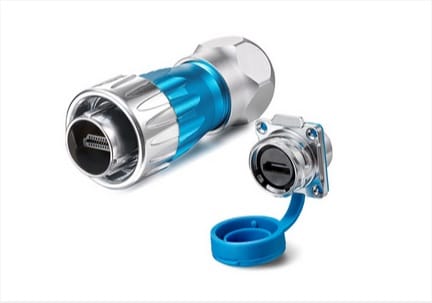

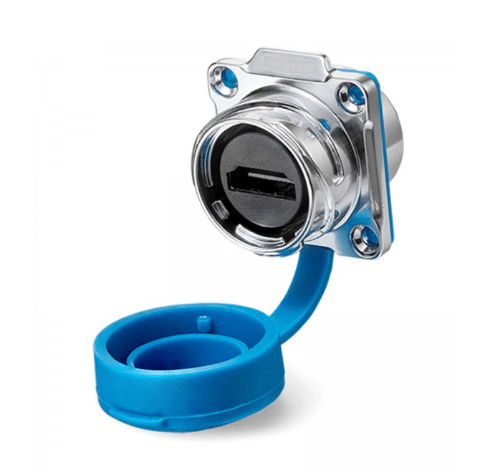

The DH-24 HDMI high-performance HDMI connector with quick lock for secure signal and data transmission. IP67 data connector in plastic housing in the DH series with size 24. The black plastic construction with gold-plated contacts ensures a long service life. The HDMI connector is waterproof and dustproof in accordance with IP67 protection class. The metal lock ensures a secure connection and protects against data and power interruptions. The maximum rated power for the data connector is 0.5 amps. The plug has a quick plug connection. The quick connector design allows it to be plugged in and unplugged with one hand.
